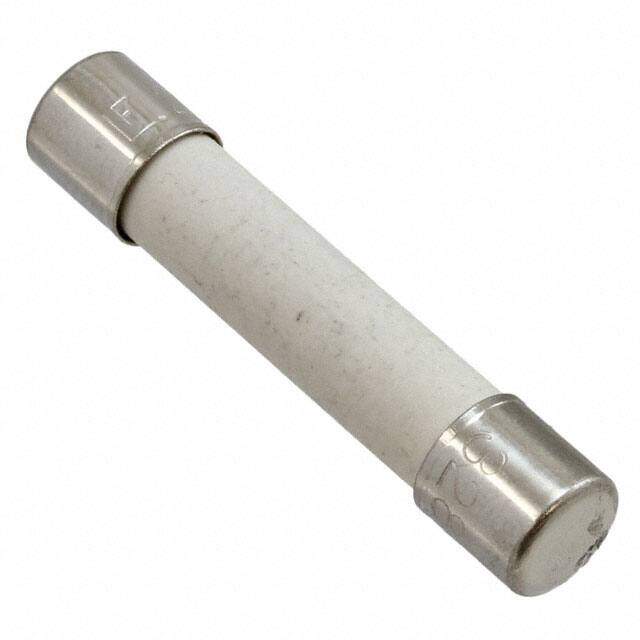

0328021.MXP
RoHS
RoHS compliant
RoHS compliantPackage 3AB, 3AG, 1/4 x 1-1/4
Category Circuit Protection / Fuses
Description
FUSE 300V HIGH I2T 3AB 21A
PDF
/
Buying Options
Total Price: USD $5.47
Unit Price: USD $5.4736
≥1 USD $5.4736
≥10 USD $5.28176
≥100 USD $5.08552
≥500 USD $3.911952
≥1000 USD $3.443528
Inventory: 958
Minimum: 1
-
+
Technical Details
Technical
Breaking Capacity @ Rated Voltage 200A
Melting I2t 4800
DC Cold Resistance 0.0042Ohms
Fuse Type Cartridge, Ceramic
Response Time Slow Blow
Approval Agency UR, TUV
Voltage - Rated AC 300V
Current Rating 21A
Current Rating (Amps) 21A
Voltage - Rated DC 100V
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Resistance 4.2mOhm
Termination Clip
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.250Diax1.250L 6.35mmx31.75mm
Series 328
Packaging Bulk
Operating Temperature -55°C~125°C
Dimensions
Length 31.75mm
Compliance
RoHS Status ROHS3 Compliant
Physical
Package / Case 3AB, 3AG, 1/4 x 1-1/4
Mounting Type Holder
Mount Holder
Supply Chain
Factory Lead Time 11 Weeks
