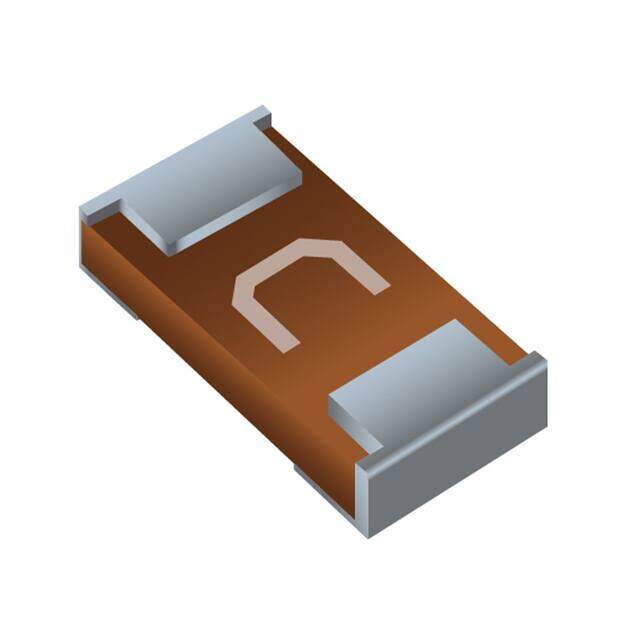

SF-0603HI300F-2
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Circuit Protection / Fuses
Description
0603 SMD HIGH-INRUSH THIN-FILM 3
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.497648
≥1 USD $0.497648
≥10 USD $0.469481
≥100 USD $0.4429
≥500 USD $0.417832
≥1000 USD $0.394184
Inventory: 1103
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Technical
Operating Temperature -55°C~90°C
Packaging Tape & Reel (TR)
Series SinglFuse? SF-0603HIxxxF
Size / Dimension 0.063Lx0.032W x 0.014 H 1.60mmx0.80mmx0.36mm
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Additional Feature PRE ARCING TIME: OPEN WITHIN 60 SEC AT 200% RATED CURRENT
Current Rating (Amps) 3A
Packing Method TR, PAPER, 7 INCH
Base Part Number SF-0603
Reference Standard UL
Voltage - Rated AC 35V
Approval Agency UL
Body Length or Diameter 1.6mm
Body Breadth 0.81 mm
Physical Dimension 1.6mm x 0.81mm x 0.36mm
Fuse Type Board Mount (Cartridge Style Excluded)
Breaking Capacity @ Rated Voltage 35A
Rated Current 3A
Melting I2t 0.6
DC Cold Resistance 0.014Ohm
Circuit Protection Type ELECTRIC FUSE
Rated Voltage(DC) 35V
Dimensions
Body Height 0.36mm
Compliance
RoHS Status ROHS3 Compliant
