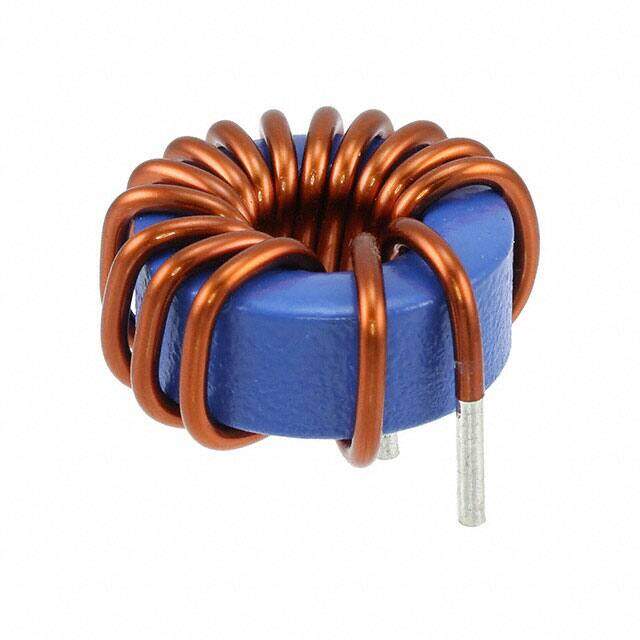

S14100034 image
Favorite
S14100034 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Horizontal (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description FIXED IND 22UH 18A 4.5 MOHM
PDF
/
Buying Options
Total Price: USD $3.37
Unit Price: USD $3.373943
≥1 USD $3.373943
≥10 USD $3.182962
≥100 USD $3.0028
≥500 USD $2.832827
≥1000 USD $2.672484
Inventory: 1240
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 20 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Horizontal (Open)
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tray
Series WE-FI
Size / Dimension 1.378Dia 35.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Toroidal
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 18A
Shielding Unshielded
Current Rating 18A
Inductance 22μH
Test Frequency 100kHz
DC Resistance (DCR) 4.5mOhm Max
Inductance Frequency - Test 100kHz

Dimensions

Height Seated (Max) 0.689 17.50mm

Compliance

RoHS Status ROHS3 Compliant
