2305-H-RC
RoHS
RoHS compliant
RoHS compliantPackage Radial, Horizontal (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

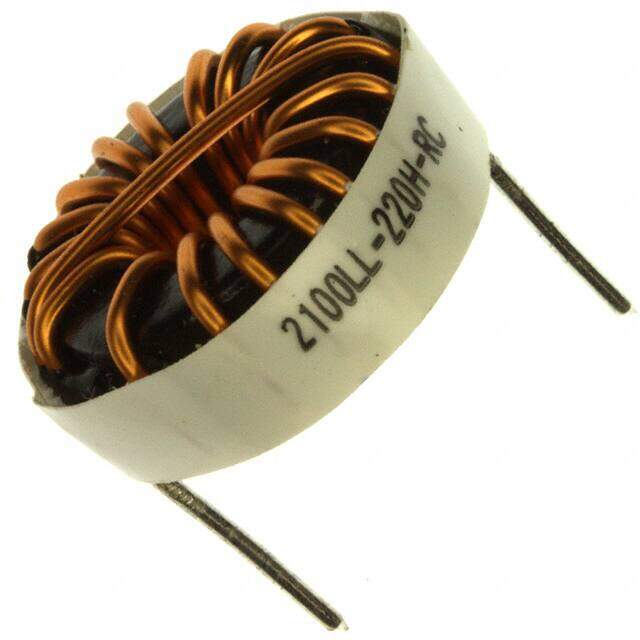

2300 Radial Horizontal (Open) 1.280Dia 32.51mm 22muH
PDF
/
Buying Options
Total Price: USD $3.77
Unit Price: USD $3.7664
≥1 USD $3.7664
≥10 USD $3.14688
≥100 USD $2.873693
≥500 USD $2.463146
≥1000 USD $2.257851
≥3000 USD $2.189422
Inventory: 33
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height Seated (Max) 0.650 16.51mm
Height 16.51mm
Diameter 32.51mm
Technical
RMS Current (Irms) 16.4A
DC Current 16.4A
Inductance Tolerance 15%
Lead/Base Style Radial
Inductor Application HIGH CURRENT INDUCTOR
Max DC Current 16.4A
DC Resistance (DCR) 7mOhm Max
Test Frequency 1kHz
Inductance 22μH
Lead Diameter 1.6764 mm
Lead Pitch 29.97mm
Military Standard Not
Current Rating 16.4A
Construction Hortizontal Mount
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Type Toroidal
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±15%
Size / Dimension 1.280Dia 32.51mm
Series 2300
Published 2007
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Iron Powder
Number of Pins 2
Terminal Shape WIRE
Package / Case Radial, Horizontal (Open)
Mounting Type Through Hole
Mount Radial, Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 16 Weeks
Alternative Model
