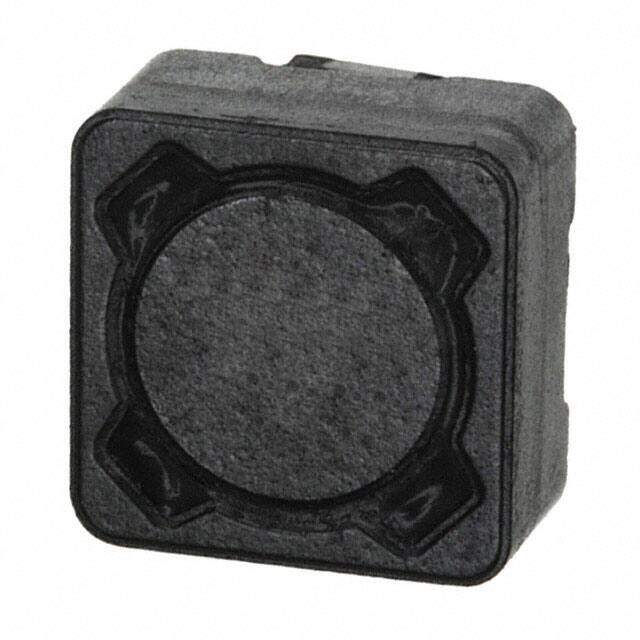

784778068
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard, 4 Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PDA Nonstandard 4Lead 0.287Lx0.287W 7.30mmx7.30mm 6.8muH
PDF
/
Buying Options
Total Price: USD $2.21
Unit Price: USD $2.2088
≥1 USD $2.2088
≥10 USD $1.9712
≥100 USD $1.8304
≥500 USD $1.76
≥1000 USD $1.6896
Inventory: 1253
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard, 4 Lead
Supplier Device Package 7332
Material - Core Nickel Zinc Ferrite (NiZn)
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PDA
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 2.3A
Shielding Shielded
Current Rating 2.3A
Inductance 6.8μH
Test Frequency 100kHz
DC Resistance (DCR) 94mOhm Max
Frequency - Self Resonant 40.7MHz
Inductance Frequency - Test 100kHz
Current - Saturation 2.5A
Dimensions
Height Seated (Max) 0.138 3.50mm
Length 7.2898mm
Width 7.2898mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200

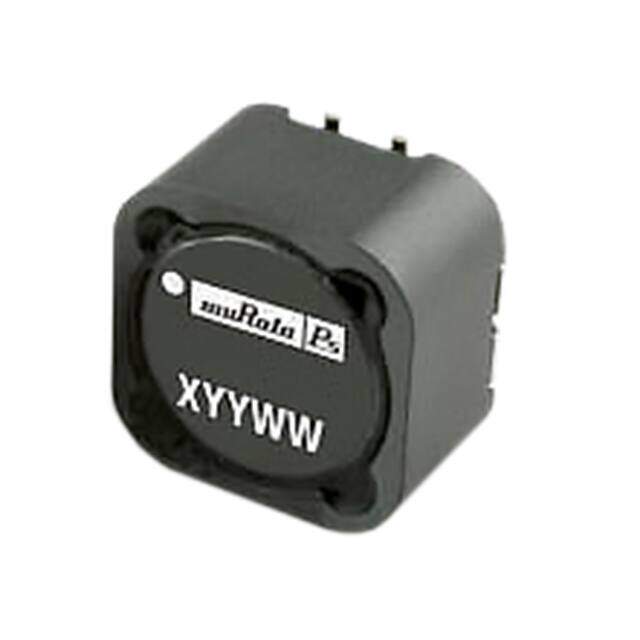

Alternative Model
