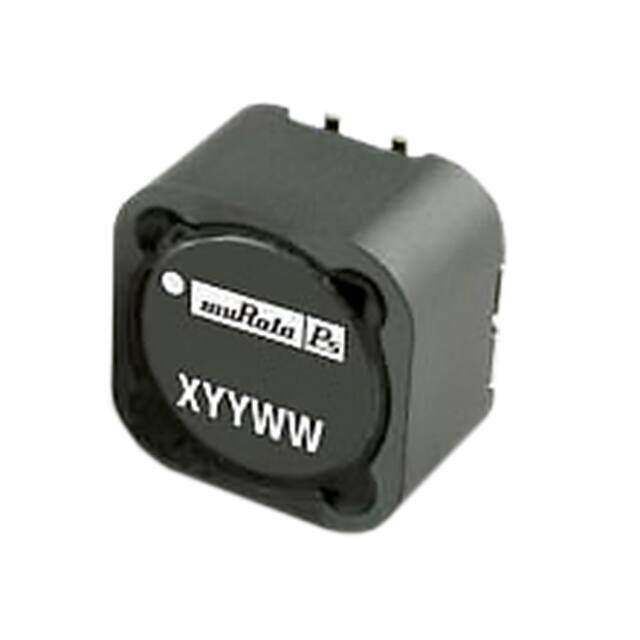

496R8C
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard, 4 Lead
Category Inductors, Coils, Chokes / Fixed Inductors
Description
4900 Nonstandard 4Lead 0.472Lx0.472W 12.00mmx12.00mm 6.8muH
PDF
/
Buying Options
Total Price: USD $1.79
Unit Price: USD $1.789483
≥1 USD $1.789483
≥200 USD $0.714218
≥500 USD $0.690585
≥1000 USD $0.678769
Inventory: 7779
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard, 4 Lead
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series 4900
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Depth 12mm
Current Rating 5.4A
Military Standard Not
Inductance 6.8μH
Test Frequency 10kHz
DC Resistance (DCR) 27mOhm Max
Max DC Current 5.4A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL IN-LINE
DC Current 5.4A
Special Feature PARALLEL CONNECTED
Dimensions
Height 8mm
Height Seated (Max) 0.315 8.00mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Alternative Model
