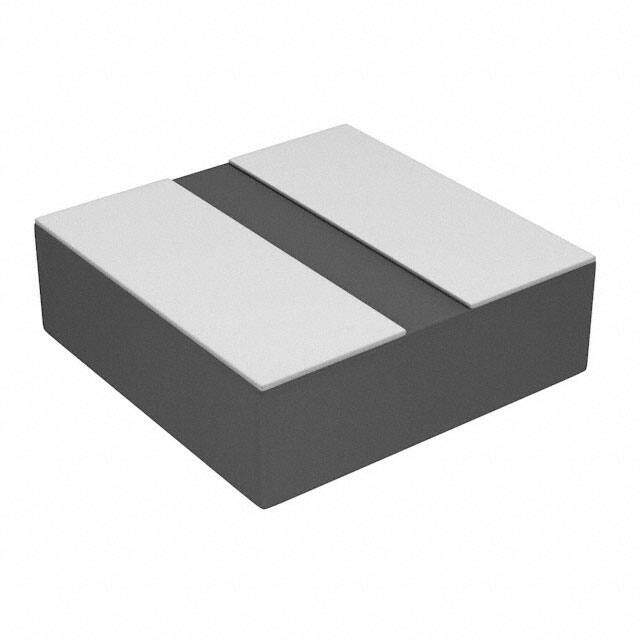

78438333022 image
Favorite
78438333022 image
Favorite

78438333022

Würth Elektronik
RoHS
RoHS RoHS compliant
Package 1212 (3030 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-MAIA 1212 (3030Metric) 0.118Lx0.118W 3.00mmx3.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $1.63
Unit Price: USD $1.627509
≥1 USD $1.627509
≥10 USD $1.535384
≥100 USD $1.448472
≥500 USD $1.366488
≥1000 USD $1.289138
Inventory: 1532
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant

Dimensions

Width 2.9972mm
Length 2.9972mm
Height Seated (Max) 0.039 1.00mm

Technical

Current - Saturation 3.9A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 50MHz
DC Resistance (DCR) 172mOhm Max
Test Frequency 100kHz
Inductance 2.2μH
Case Code (Imperial) 1212
Case Code (Metric) 3030
Current Rating 1.4A
Shielding Shielded
Current Rating (Amps) 1.4A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Molded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Series WE-MAIA
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Iron Alloy
Supplier Device Package 3010
Package / Case 1212 (3030 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 14 Weeks
