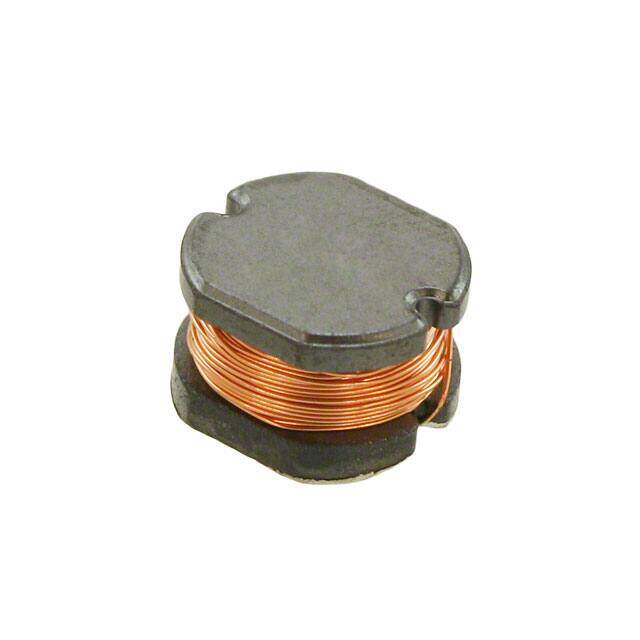

76877530
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2HV Nonstandard 0.307Lx0.276W 7.80mmx7.00mm 1mH
PDF
/
Buying Options
Total Price: USD $20.25
Unit Price: USD $20.2464
≥1 USD $20.2464
≥10 USD $16.61265
≥100 USD $16.09395
≥500 USD $15.5743
≥1000 USD $15.0556
Inventory: 1115
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2 HV
Size / Dimension 0.307Lx0.276W 7.80mmx7.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 300mA
Shielding Unshielded
Current Rating 300mA
Inductance 1mH
Test Frequency 100kHz
DC Resistance (DCR) 3.3Ohm Max
Max DC Current 300mA
Frequency - Self Resonant 2.4MHz
Inductance Frequency - Test 100kHz
Current - Saturation 300mA
Inductance Tolerance 10%
RMS Current (Irms) 300mA
Dimensions
Height 5mm
Height Seated (Max) 0.217 5.50mm
Length 7.7978mm
Width 7.0104mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
