768772821
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

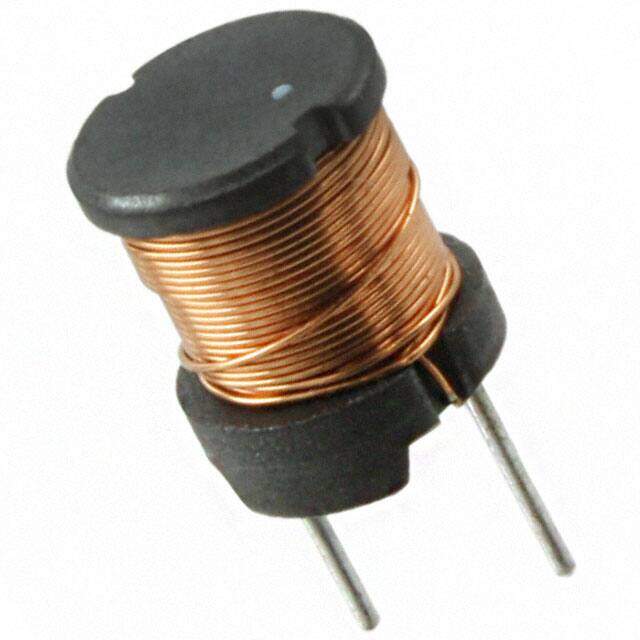

WE-TI HV Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 820muH
PDF
/
Buying Options
Total Price: USD $1.15
Unit Price: USD $1.149658
≥1 USD $1.149658
≥10 USD $1.084581
≥100 USD $1.023196
≥500 USD $0.965282
≥1000 USD $0.910636
Inventory: 1125
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 22 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TI HV
Size / Dimension 0.307Dia 7.80mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 500mA
Shielding Unshielded
Current Rating 500mA
Lead Pitch 5mm
Inductance 820μH
Test Frequency 100kHz
DC Resistance (DCR) 1.92Ohm Max
Max DC Current 500mA
Frequency - Self Resonant 2MHz
Inductance Frequency - Test 100kHz
Current - Saturation 720mA
Inductance Tolerance 10%
RMS Current (Irms) 500mA
Dimensions
Height 5mm
Height Seated (Max) 0.394 10.00mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
