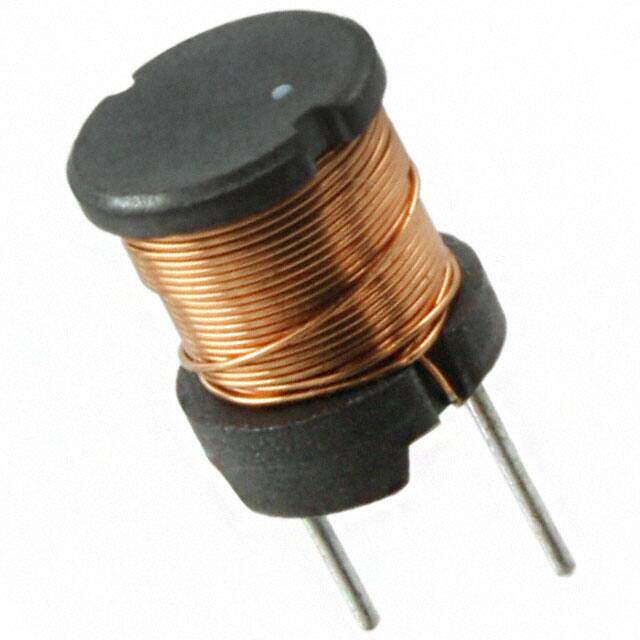

ELC-18E821
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
18E Radial Vertical Cylinder (Open) 0.748Dia 19.00mm 820muH
PDF
/
Inventory: 5876
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.984 25.00mm
Height 25.0952mm
Technical
Special Feature DC RESISTANCE IS MEASURED AT 20% TOLERANCE
Lead/Base Style Radial
Inductor Application POWER INDUCTOR
Max DC Current 1.1A
Current 650mA
DC Resistance (DCR) 210mOhm
Test Frequency 10kHz
Inductance 820μH
Lead Diameter 0.8 mm
Lead Length 3.5mm
Operating Temperature (Min) -20°C
Operating Temperature (Max) 105°C
Current Rating 1.1A
Construction Cylindrical
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
Terminal Finish Tin/Copper (Sn/Cu)
Type Wirewound
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e2
Tolerance ±10%
Size / Dimension 0.748Dia 19.00mm
Series 18E
Published 2002
Packaging Bulk
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Package / Case Radial, Vertical Cylinder (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 20 Weeks
