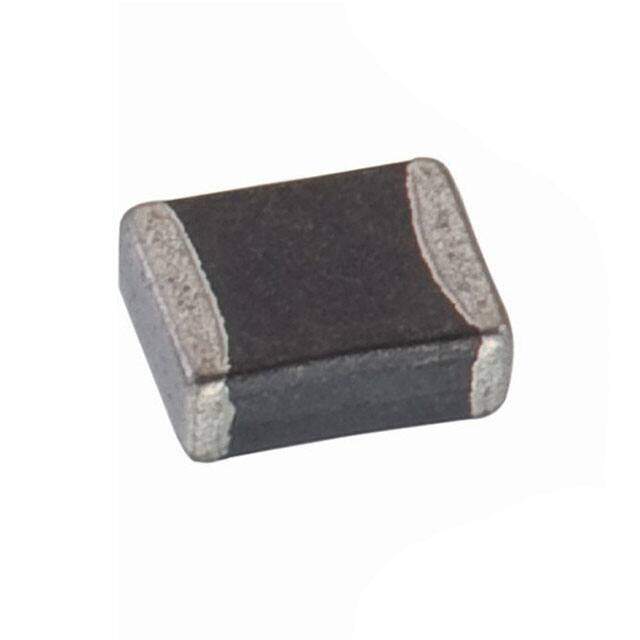

74479974156 image
Favorite
74479974156 image
Favorite

74479974156

Würth Elektronik
RoHS
RoHS RoHS compliant
Package 0805 (2012 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PMMI 0805 (2012Metric) 0.079Lx0.049W 2.00mmx1.25mm 560nH
PDF
/
Buying Options
Total Price: USD $0.76
Unit Price: USD $0.75612
≥1 USD $0.75612
≥10 USD $0.713324
≥100 USD $0.672947
≥500 USD $0.634852
≥1000 USD $0.598923
Inventory: 1187
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 1.2446mm
Length 2.0066mm
Height Seated (Max) 0.024 0.60mm

Technical

RMS Current (Irms) 1.7A
Inductance Tolerance 20%
Current - Saturation 2.4A
Inductance Frequency - Test 1MHz
Frequency - Self Resonant 21MHz
DC Resistance (DCR) 100mOhm Max
Test Frequency 1MHz
Inductance 560nH
Case Code (Imperial) 0805
Case Code (Metric) 2012
Current Rating 1.7A
Shielding Shielded
Current Rating (Amps) 1.7A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Multilayer
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Series WE-PMMI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
