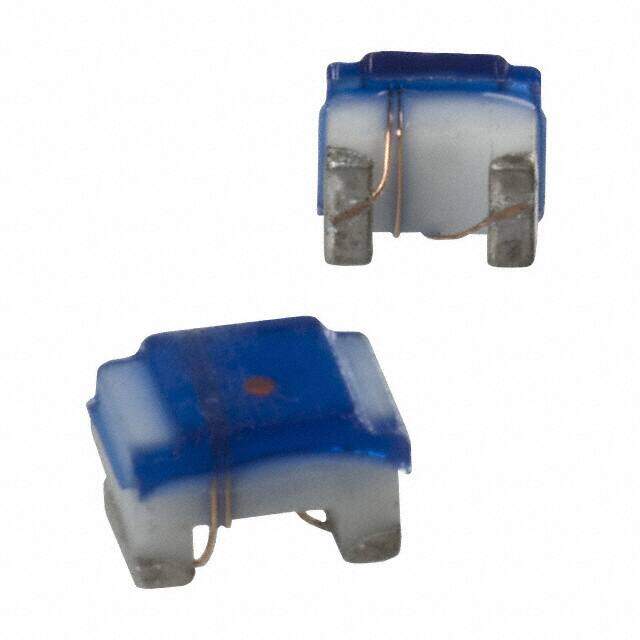

PM0805-R56K-RC image
Favorite
PM0805-R56K-RC image
Favorite

PM0805-R56K-RC

Bourns Inc.
RoHS
RoHS RoHS compliant
Package 0805 (2012 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description PM0805 0805 (2012Metric) 0.083Lx0.059W 2.10mmx1.50mm 560nH
PDF
/
Inventory: 9029
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.059 1.50mm
Height 1.3mm

Technical

DC Current 230mA
Q Factor 40
Quality Factor-Min (at L-nom) 23
Q @ Freq 23 @ 50MHz
Terminal Placement DUAL ENDED
Inductor Application RF INDUCTOR
Frequency - Self Resonant 340MHz
Max DC Current 230mA
DC Resistance (DCR) 1.9Ohm
Test Frequency 50MHz
Inductance 560nH
Case Code (Imperial) 0805
Case Code (Metric) 2012
Military Standard Not
Current Rating 230mA
Construction Chip
Depth 1.7mm
Number of Functions 1
Shielding NO
Packing Method TR
HTS Code 8504.50.80.00
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Tolerance ±10%
Size / Dimension 0.083Lx0.059W 2.10mmx1.50mm
Series PM0805
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Alumina
Weight 5.499807mg
Number of Pins 2
Terminal Shape ONE SURFACE
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
