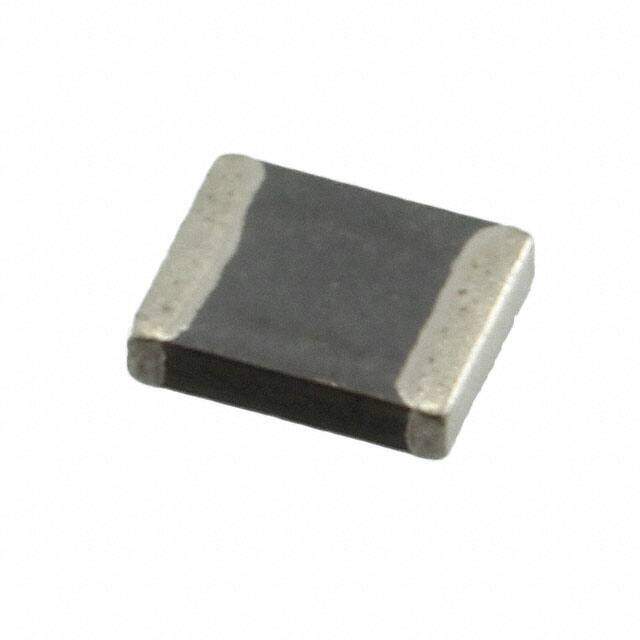

74479899150
RoHS
RoHS compliant
RoHS compliantPackage 1210 (3225 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PMI 1210 (3225Metric) 0.126Lx0.102W 3.20mmx2.60mm 500nH
PDF
/
Inventory: 3459
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210 (3225 Metric)
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PMI
Size / Dimension 0.126Lx0.102W 3.20mmx2.60mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Multilayer
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 3.8A
Shielding Shielded
Current Rating 3.8A
Case Code (Metric) 3225
Case Code (Imperial) 1210
Inductance 500nH
Test Frequency 1MHz
DC Resistance (DCR) 18mOhm
Frequency - Self Resonant 80MHz
Q @ Freq 22 @ 1MHz
Inductance Frequency - Test 1MHz
Current - Saturation 1.8A
Dimensions
Height Seated (Max) 0.047 1.20mm
Length 3.2004mm
Width 2.5908mm
Compliance
RoHS Status ROHS3 Compliant
