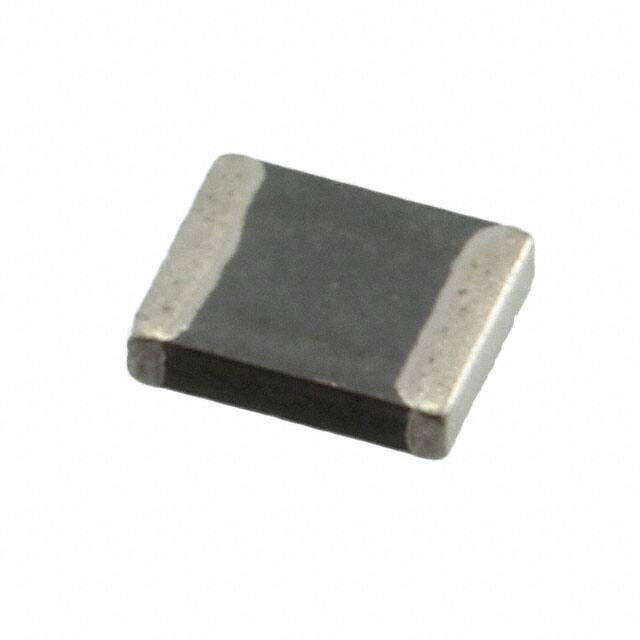

74479897150 image
Favorite
74479897150 image
Favorite

74479897150

Würth Elektronik
RoHS
RoHS RoHS compliant
Package 1210 (3225 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PMI 1210 (3225Metric) 0.126Lx0.102W 3.20mmx2.60mm 500nH
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.903649
≥1 USD $0.903649
≥10 USD $0.852495
≥100 USD $0.804243
≥500 USD $0.758717
≥1000 USD $0.71577
Inventory: 1259
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 15 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210 (3225 Metric)

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PMI
Size / Dimension 0.126Lx0.102W 3.20mmx2.60mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Multilayer
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 2.9A
Shielding Shielded
Current Rating 2.9A
Case Code (Metric) 3225
Case Code (Imperial) 1210
Inductance 500nH
Test Frequency 1MHz
DC Resistance (DCR) 25mOhm
Frequency - Self Resonant 90MHz
Q @ Freq 25 @ 1MHz
Inductance Frequency - Test 1MHz
Current - Saturation 1.1A

Dimensions

Height Seated (Max) 0.028 0.70mm
Length 3.2004mm
Width 2.5908mm

Compliance

RoHS Status ROHS3 Compliant
