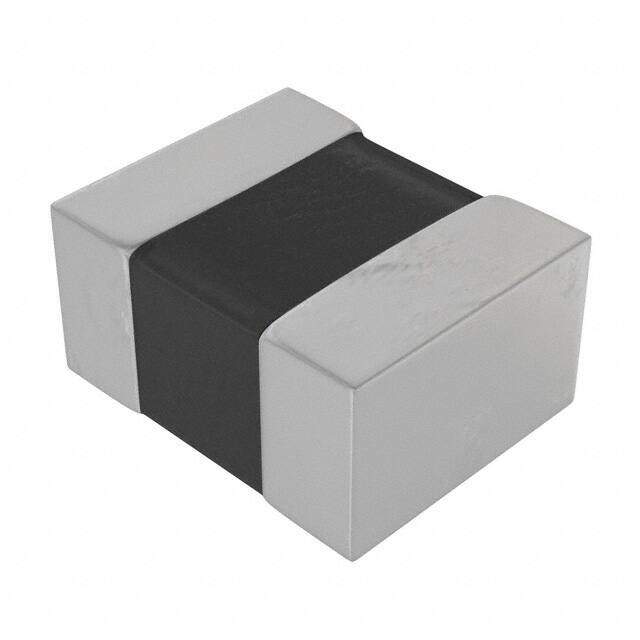

74479876147C image
Favorite
74479876147C image
Favorite

74479876147C

Würth Elektronik
RoHS
RoHS RoHS compliant
Package 0806 (2016 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PMI 0806 (2016Metric) 0.079Lx0.063W 2.00mmx1.60mm 470nH
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.514694
≥1 USD $0.514694
≥10 USD $0.48556
≥100 USD $0.458077
≥500 USD $0.432149
≥1000 USD $0.407686
Inventory: 2162
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 1.6002mm
Length 2.0066mm
Height Seated (Max) 0.039 1.00mm

Technical

RMS Current (Irms) 2.6A
Inductance Tolerance 20%
Current - Saturation 2.6A
Inductance Frequency - Test 1MHz
Q @ Freq 13 @ 1MHz
Frequency - Self Resonant 110MHz
DC Resistance (DCR) 44mOhm
Test Frequency 1MHz
Inductance 470nH
Case Code (Imperial) 0806
Case Code (Metric) 2016
Current Rating 2.6A
Shielding Shielded
Current Rating (Amps) 2.6A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Multilayer
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.079Lx0.063W 2.00mmx1.60mm
Series WE-PMI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Package / Case 0806 (2016 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
