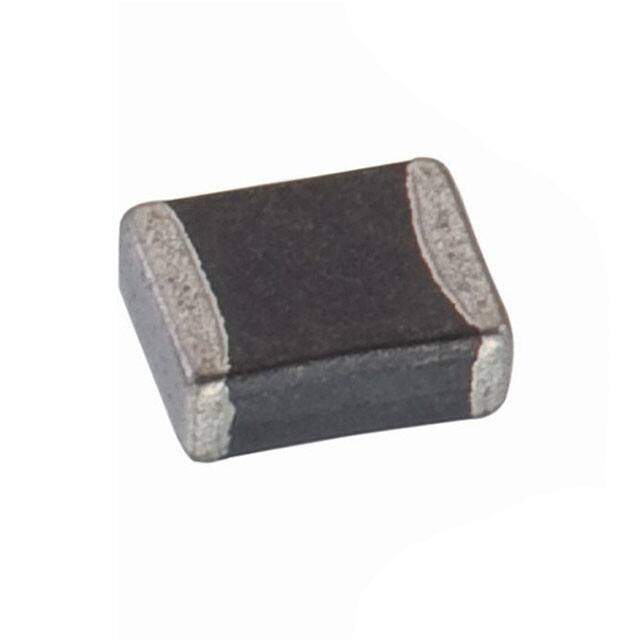

74479875210C
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PMI 0805 (2012Metric) 0.079Lx0.047W 2.00mmx1.20mm 1muH
PDF
/
Inventory: 8973
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PMI
Size / Dimension 0.079Lx0.047W 2.00mmx1.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Multilayer
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 1.6A
Shielding Shielded
Current Rating 1.6A
Case Code (Metric) 2012
Case Code (Imperial) 0805
Inductance 1μH
Test Frequency 1MHz
DC Resistance (DCR) 115mOhm
Frequency - Self Resonant 80MHz
Q @ Freq 15 @ 1MHz
Inductance Frequency - Test 1MHz
Current - Saturation 1.4A
Q Factor 15
Inductance Tolerance 20%
RMS Current (Irms) 1.2A
Series Resistance 115mOhm
Ambient Temperature Range High 105°C
Dimensions
Height 1mm
Height Seated (Max) 0.039 1.00mm
Length 2.0066mm
Width 1.1938mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
