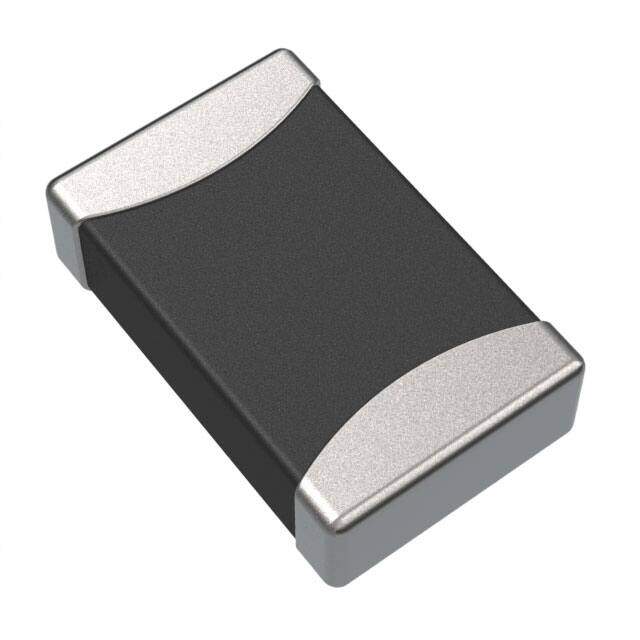

CVH201205-1R0M
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CVH201205 0805 (2012Metric) 0.079Lx0.049W 2.00mmx1.25mm 1muH
PDF
/
Buying Options
Total Price: USD $0.19
Unit Price: USD $0.1936
≥1 USD $0.1936
≥10 USD $0.16016
≥100 USD $0.146784
≥500 USD $0.129536
≥1000 USD $0.113432
≥3000 USD $0.107994
Inventory: 7101
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.022 0.55mm
Technical
Inductance Frequency - Test 1MHz
Frequency - Self Resonant 90MHz
DC Resistance (DCR) 237.5mOhm Max
Inductance 1μH
Shielding Shielded
Current Rating (Amps) 800mA
Type Multilayer
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Series CVH201205
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Material - Core Ferrite
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
