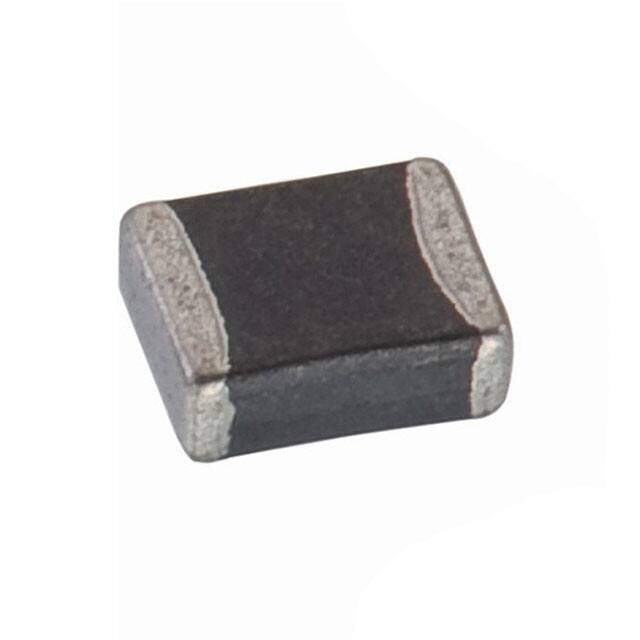

74479276210C
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PMCI 0805 (2012Metric) 0.079Lx0.049W 2.00mmx1.25mm 1muH
PDF
/
Buying Options
Total Price: USD $0.98
Unit Price: USD $0.9768
≥1 USD $0.9768
≥10 USD $0.78408
≥100 USD $0.69168
≥500 USD $0.60896
Inventory: 1153
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 1.2446mm
Length 2.0066mm
Height Seated (Max) 0.039 1.00mm
Technical
RMS Current (Irms) 2.1A
Inductance Tolerance 20%
Current - Saturation 3.1A
Inductance Frequency - Test 1MHz
Frequency - Self Resonant 70MHz
DC Resistance (DCR) 65mOhm Max
Test Frequency 1MHz
Inductance 1μH
Case Code (Imperial) 0805
Case Code (Metric) 2012
Current Rating 2.1A
Shielding Shielded
Current Rating (Amps) 2.1A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Molded
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Series WE-PMCI
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
