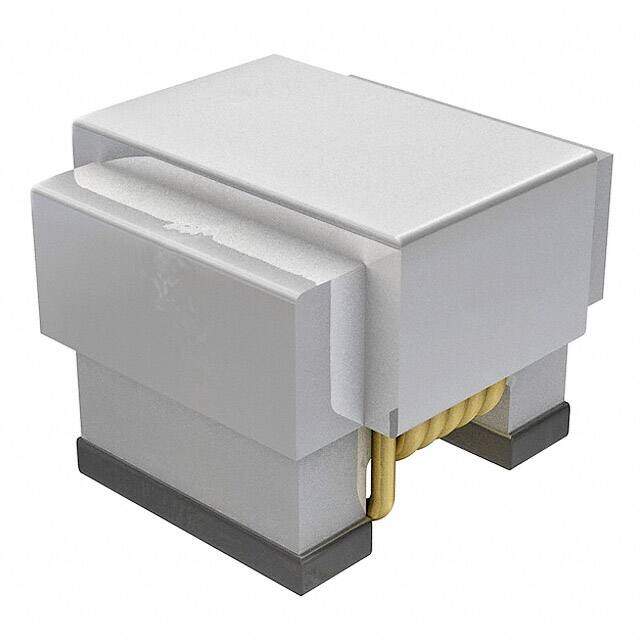

PE-0805CD102GTT

Pulse Electronics Network
RoHS
RoHS RoHS compliant
Package 0805 (2012 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description 0805CD 0805 (2012Metric) 0.090Lx0.066W 2.29mmx1.68mm 1muH
PDF
/
Inventory: 8174
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Terminal Shape WRAPAROUND
Weight 11.991848mg
Material - Core Ceramic
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2007
Series 0805CD
Size / Dimension 0.090Lx0.066W 2.29mmx1.68mm
Tolerance ±2%
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Gold (Au)
HTS Code 8504.50.80.00
Packing Method TR, 7 Inch
Shielding NO
Number of Functions 1
Depth 1.68mm
Construction Chip
Current Rating 150mA
Case Code (Metric) 2012
Case Code (Imperial) 0805
Inductance 1μH
Test Frequency 25MHz
DC Resistance (DCR) 3.6Ohm Max
Max DC Current 150mA
Frequency - Self Resonant 200MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 20 @ 50MHz
Quality Factor-Min (at L-nom) 20
Q Factor 20
Special Feature Q MEASURED AT 50 MHZ

Dimensions

Height 760μm
Height Seated (Max) 0.062 1.58mm

Compliance

Radiation Hardening No
RoHS Status RoHS Compliant
