74479157
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-MI SMT MULTILAYER INDUCTOR SI
PDF
/
Buying Options
Total Price: USD $4.55
Unit Price: USD $4.54955
≥1 USD $4.54955
≥10 USD $3.7335
≥100 USD $3.61665
≥500 USD $3.4998
≥1000 USD $3.38295
Inventory: 6001
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 3.2mm
Height Seated (Max) 0.051 1.30mm
Height 1.1mm
Technical
Inductance Frequency - Test 10MHz
Q @ Freq 45 @ 10MHz
Frequency - Self Resonant 52MHz
Max DC Current 50mA
DC Resistance (DCR) 600mOhm Max
Inductance 2.7μH
Depth 1.6mm
Shielding Unshielded
Current Rating (Amps) 50mA
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Type Multilayer
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Series WE-MI
Operating Temperature -55°C~125°C
Physical
Material - Core Nickel Zinc Ferrite (NiZn)
Supplier Device Package 1206
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 9 Weeks

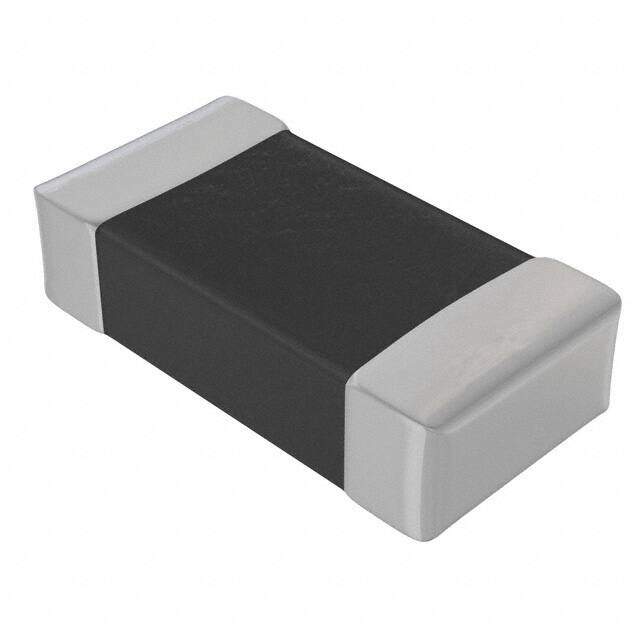

Alternative Model
