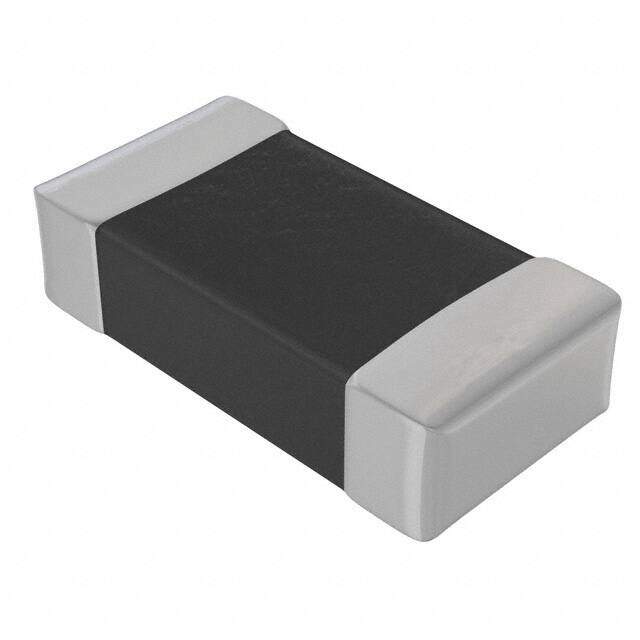

AIML-1206-2R7K-T
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
AIML-1206 1206 (3216Metric) 0.126Lx0.063W 3.20mmx1.60mm 2.7muH
PDF
/
Inventory: 2552
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2004
Series AIML-1206
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±10%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Multilayer
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
HTS Code 8504.50.80.00
Packing Method TR, 7 Inch
Shielding NO
Number of Functions 1
Construction Chip
Current Rating 50mA
Case Code (Metric) 3216
Case Code (Imperial) 1206
Inductance 2.7μH
Test Frequency 10MHz
DC Resistance (DCR) 550mOhm Max
Max DC Current 50mA
Frequency - Self Resonant 53MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 50 @ 10MHz
Quality Factor-Min (at L-nom) 45
Q Factor 45
Dimensions
Height 800μm
Height Seated (Max) 0.055 1.40mm
Compliance
RoHS Status RoHS Compliant
