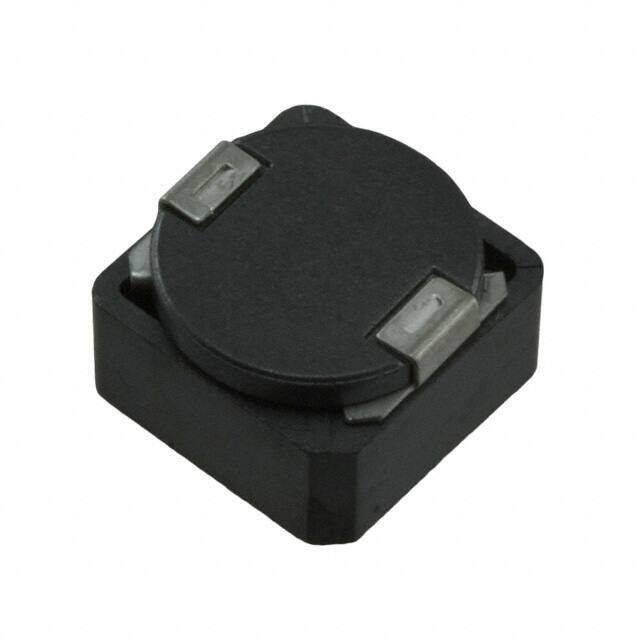

7447797820
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PDF Nonstandard 0.402Lx0.402W 10.20mmx10.20mm 8.2muH
PDF
/
Buying Options
Total Price: USD $1.81
Unit Price: USD $1.8107
≥1 USD $1.8107
≥10 USD $1.4858
≥100 USD $1.43925
≥500 USD $1.3927
≥1000 USD $1.34615
Inventory: 1255
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 10.2mm
Length 10.2108mm
Height Seated (Max) 0.177 4.50mm
Technical
RMS Current (Irms) 5.05A
Inductance Tolerance 20%
Current - Saturation 5.8A
Inductance Frequency - Test 100kHz
Frequency - Self Resonant 28MHz
DC Resistance (DCR) 28.6mOhm Max
Test Frequency 100kHz
Inductance 8.2μH
Current Rating 5.05A
Shielding Shielded
Current Rating (Amps) 5.05A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 150°C
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.402Lx0.402W 10.20mmx10.20mm
Series WE-PDF
Packaging Tape & Reel (TR)
Operating Temperature -40°C~150°C
Physical
Material - Core Nickel Zinc Ferrite (NiZn)
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
