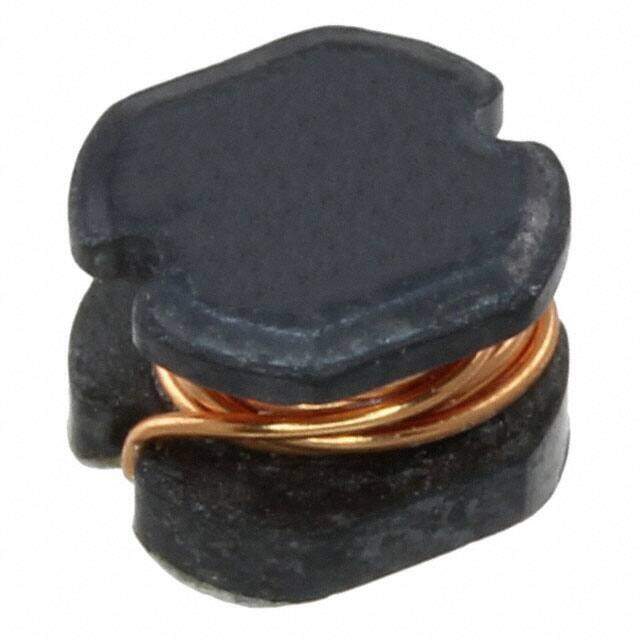

PF0580.822NLT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Fixed Inductors UNSHIELDED DRUM CORE
PDF
/
Inventory: 6650
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series PF0580NL
Size / Dimension 0.185Lx0.165W 4.70mmx4.20mm
Tolerance ±15%
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
Terminal Finish Matte Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Current Rating 1.2A
Inductance 8.2μH
DC Resistance (DCR) 111mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Rated Current-Max 1.6A
Dimensions
Height Seated (Max) 0.137 3.48mm
Compliance
RoHS Status RoHS Compliant
