7447797300
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

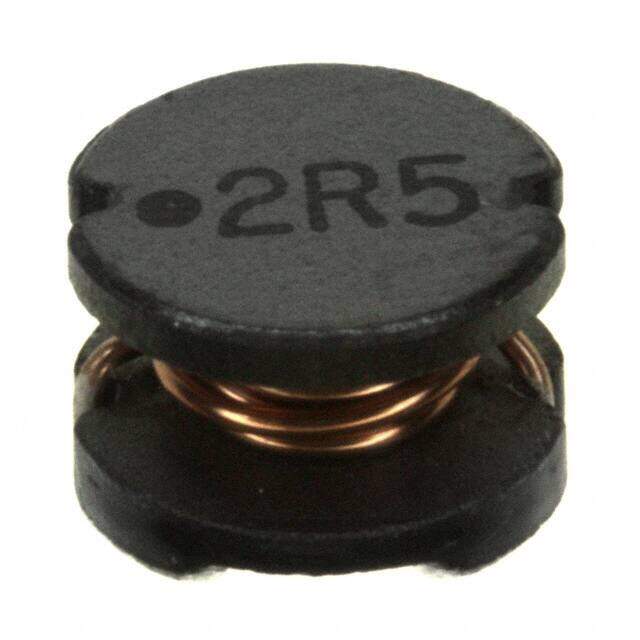

WE-PDF Nonstandard 0.402Lx0.402W 10.20mmx10.20mm 2.5muH
PDF
/
Inventory: 6145
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Nickel Zinc Ferrite (NiZn)
Technical
Operating Temperature -40°C~150°C
Packaging Tape & Reel (TR)
Series WE-PDF
Size / Dimension 0.402Lx0.402W 10.20mmx10.20mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Max Operating Temperature 150°C
Min Operating Temperature -40°C
Current Rating (Amps) 8.4A
Shielding Shielded
Depth 10.2mm
Current Rating 7A
Inductance 2.5μH
Test Frequency 100kHz
DC Resistance (DCR) 10.2mOhm Max
Max DC Current 7A
Frequency - Self Resonant 61MHz
Inductance Frequency - Test 100kHz
Current - Saturation 10.5A
Inductance Tolerance 20%
RMS Current (Irms) 8.4A
Dimensions
Height 4.4958mm
Height Seated (Max) 0.177 4.50mm
Length 10.2108mm
Width 10.2108mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
