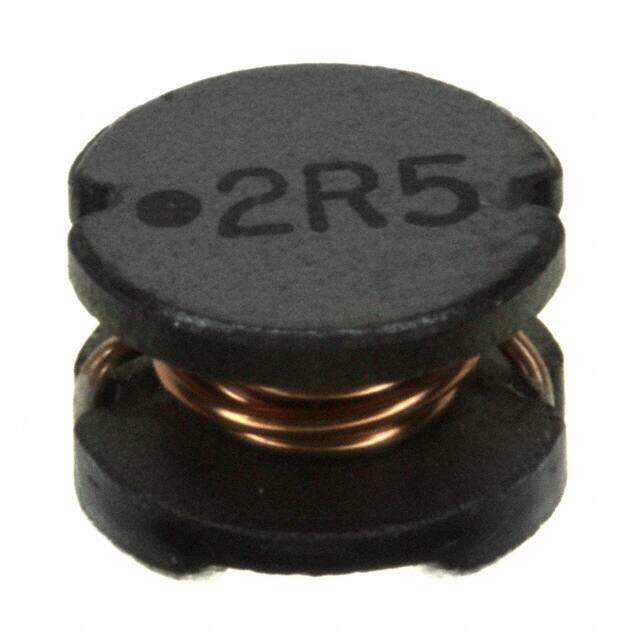

744775025A image
Favorite
744775025A image
Favorite

744775025A

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD2 Nonstandard 0.295Lx0.295W 7.50mmx7.50mm 2.5muH
PDF
/
Inventory: 6919
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Width 7.493mm
Length 7.493mm
Height Seated (Max) 0.197 5.00mm
Height 5.0038mm
Diameter 7.5mm

Technical

Inductance Frequency - Test 1kHz
Q @ Freq 32 @ 7.96MHz
Frequency - Self Resonant 70MHz
Max DC Current 5A
DC Resistance (DCR) 20mOhm Max
Test Frequency 1kHz
Inductance 2.5μH
Current Rating 5A
Shielding Unshielded
Current Rating (Amps) 5A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.295Lx0.295W 7.50mmx7.50mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 12 Weeks
