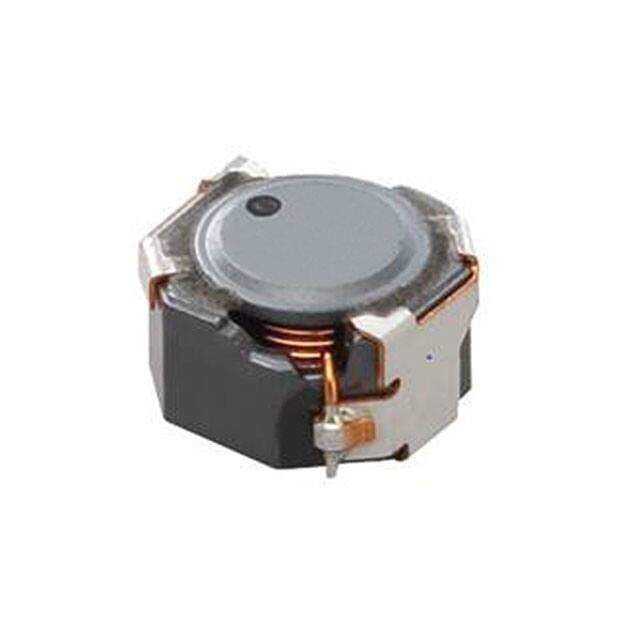

7447779004 image
Favorite
7447779004 image
Favorite

7447779004

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD Robust Nonstandard 0.287Lx0.287W 7.30mmx7.30mm 4.7muH
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.67165
≥1 USD $0.67165
≥10 USD $0.551
≥100 USD $0.5339
≥500 USD $0.5168
≥1000 USD $0.4997
Inventory: 1240
Minimum: 1
-
+

Technical Details

Compliance

Ratings AEC-Q200
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 7.3mm
Length 7.3mm
Height Seated (Max) 0.177 4.50mm
Height 4.5mm

Technical

Series Resistance 32mOhm
RMS Current (Irms) 3.16A
Inductance Tolerance 20%
Current - Saturation 4.4A
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 37MHz
Max DC Current 3.16A
DC Resistance (DCR) 32mOhm Max
Test Frequency 1kHz
Inductance 4.7μH
Lead Pitch 4mm
Current Rating 3.16A
Depth 7.3mm
Shielding Shielded
Current Rating (Amps) 3.16A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 32mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.287Lx0.287W 7.30mmx7.30mm
Series WE-PD Robust
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Weight 4.535924g
Supplier Device Package 7345
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 16 Weeks
