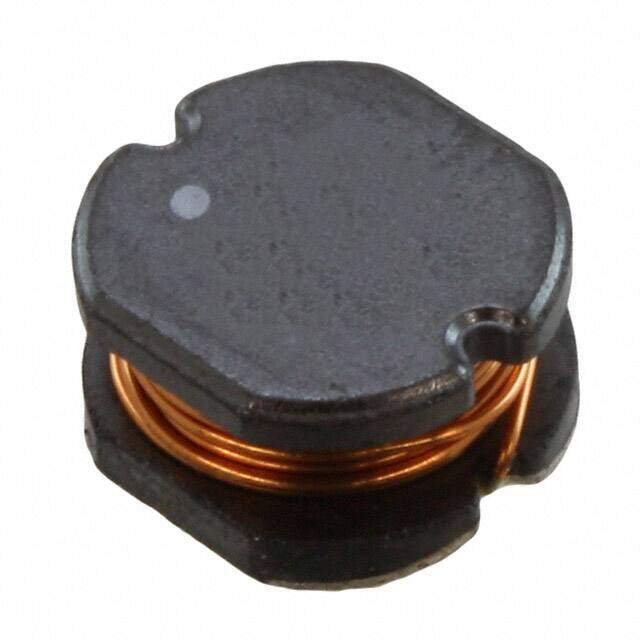

744776215
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.394Lx0.354W 10.00mmx9.00mm 150muH
PDF
/
Buying Options
Total Price: USD $18.45
Unit Price: USD $18.4528
≥1 USD $18.4528
≥10 USD $15.1411
≥100 USD $14.668
≥500 USD $14.1949
≥1000 USD $13.7218
Inventory: 1102
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 10mm
Length 9mm
Height Seated (Max) 0.232 5.90mm
Height 5.4mm
Technical
RMS Current (Irms) 810mA
Inductance Tolerance 10%
Current - Saturation 900mA
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 6MHz
Max DC Current 810mA
DC Resistance (DCR) 470mOhm Max
Test Frequency 10kHz
Inductance 150μH
Current Rating 810mA
Shielding Unshielded
Current Rating (Amps) 810mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 470mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.394Lx0.354W 10.00mmx9.00mm
Series WE-PD2
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
