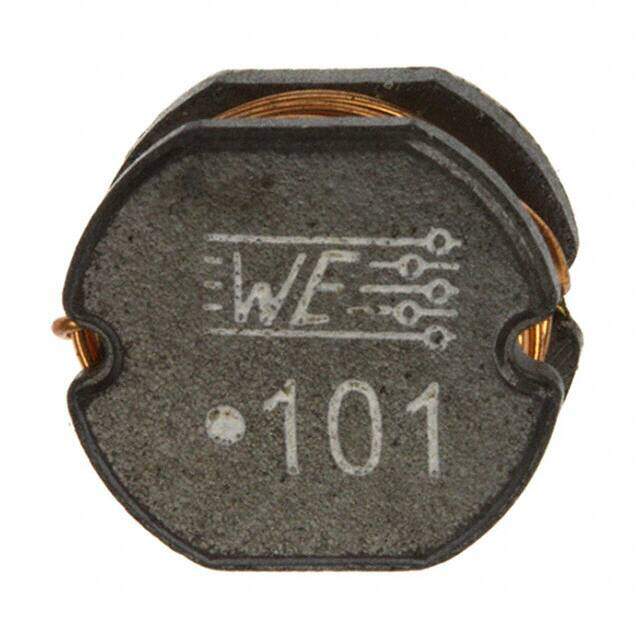

74477620 image
Favorite
74477620 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD2 Nonstandard 0.394Lx0.354W 10.00mmx9.00mm 100muH
PDF
/
Buying Options
Total Price: USD $16.66
Unit Price: USD $16.6573
≥1 USD $16.6573
≥10 USD $13.66765
≥100 USD $13.24015
≥500 USD $12.8136
≥1000 USD $12.3861
Inventory: 1261
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.394Lx0.354W 10.00mmx9.00mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 350mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 1.02A
Shielding Unshielded
Depth 10mm
Current Rating 1.02A
Inductance 100μH
Test Frequency 10kHz
DC Resistance (DCR) 350mOhm Max
Max DC Current 1.02A
Frequency - Self Resonant 7.5MHz
Inductance Frequency - Test 10kHz
Current - Saturation 1.1A
Inductance Tolerance 10%
RMS Current (Irms) 1.02A
Series Resistance 200mOhm

Dimensions

Height 5.4mm
Height Seated (Max) 0.232 5.90mm
Length 10.0076mm
Width 8.9916mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
