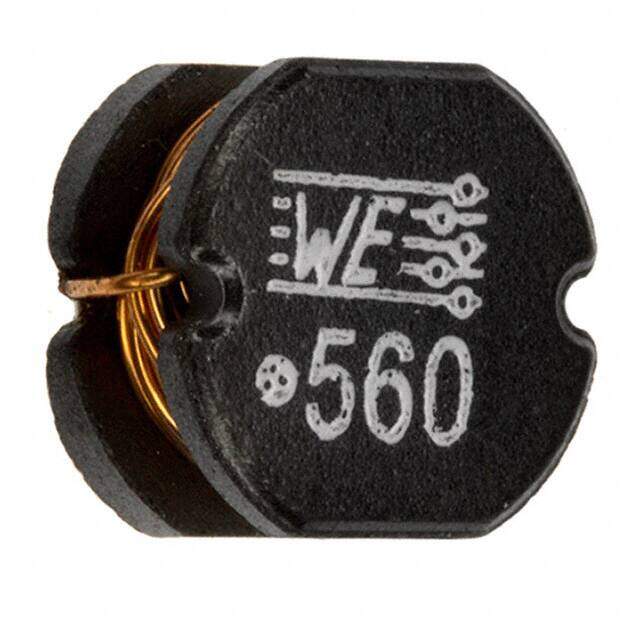

744776156
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.394Lx0.354W 10.00mmx9.00mm 56muH
PDF
/
Buying Options
Total Price: USD $19.93
Unit Price: USD $19.9348
≥1 USD $19.9348
≥10 USD $16.35615
≥100 USD $15.84505
≥500 USD $15.33395
≥1000 USD $14.82285
Inventory: 1848
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 9mm
Length 10.0076mm
Height Seated (Max) 0.232 5.90mm
Height 5.4mm
Technical
RMS Current (Irms) 1.36A
Inductance Tolerance 10%
Current - Saturation 1.53A
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 10MHz
Max DC Current 1.36A
DC Resistance (DCR) 190mOhm Max
Test Frequency 1kHz
Inductance 56μH
Current Rating 1.36A
Shielding Unshielded
Current Rating (Amps) 1.36A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 190mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.394Lx0.354W 10.00mmx9.00mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
