CDR105BNP-560LC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDR105B Nonstandard 0.394Lx0.354W 10.00mmx9.00mm 56muH
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.794305
≥1 USD $0.794305
≥200 USD $0.307219
≥500 USD $0.296715
≥1000 USD $0.291464
Inventory: 4850
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.217 5.50mm
Height 5.5mm
Technical
Case/Size Code 4140
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 11.1MHz
Max DC Current 930mA
DC Resistance (DCR) 190mOhm Max
Test Frequency 2.52MHz
Inductance 56μH
Current Rating 930mA
Depth 9.4mm
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±15%
Size / Dimension 0.394Lx0.354W 10.00mmx9.00mm
Series CDR105B
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -40°C~100°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks

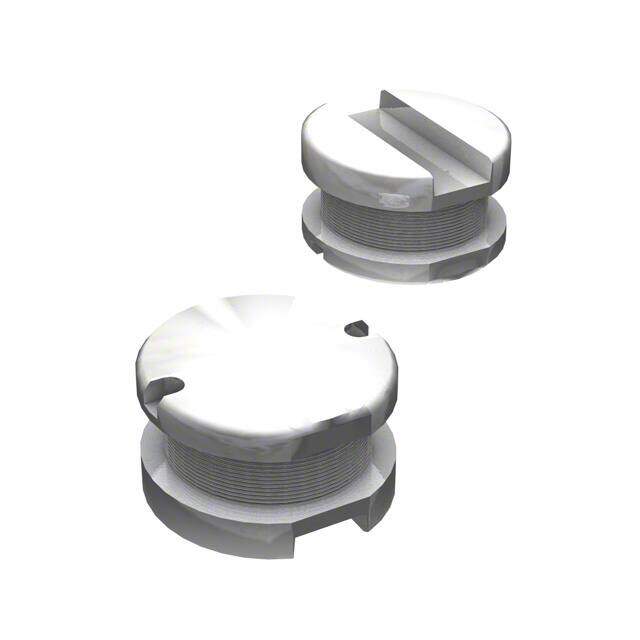

Alternative Model
