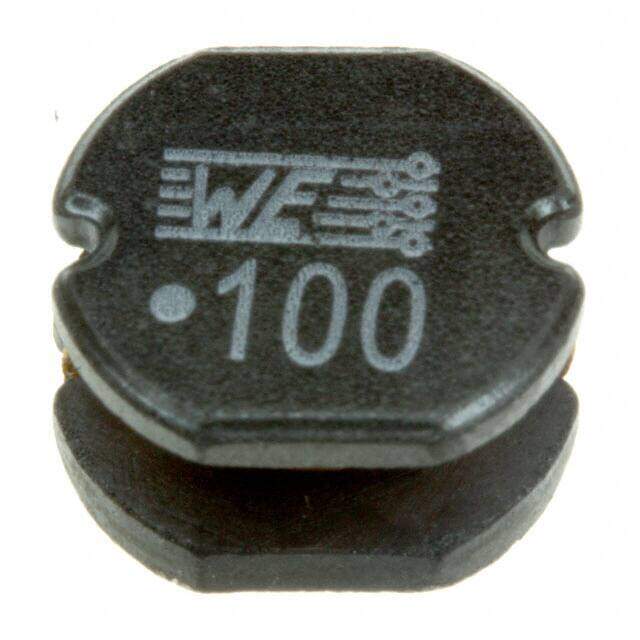

74477610 image
Favorite
74477610 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD2 Nonstandard 0.394Lx0.354W 10.00mmx9.00mm 10muH
PDF
/
Buying Options
Total Price: USD $1.61
Unit Price: USD $1.6112
≥1 USD $1.6112
≥10 USD $1.3224
≥100 USD $1.2806
≥500 USD $1.23975
≥1000 USD $1.19795
Inventory: 1057
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.394Lx0.354W 10.00mmx9.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 60mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 2.98A
Shielding Unshielded
Depth 9mm
Current Rating 2.98A
Inductance 10μH
Test Frequency 1kHz
DC Resistance (DCR) 60mOhm Max
Max DC Current 2.98A
Frequency - Self Resonant 24MHz
Inductance Frequency - Test 10kHz
Current - Saturation 3.24A
Inductance Tolerance 20%
RMS Current (Irms) 2.98A
Series Resistance 28mOhm

Dimensions

Height 5.4mm
Height Seated (Max) 0.232 5.90mm
Length 10mm
Width 8.9916mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
