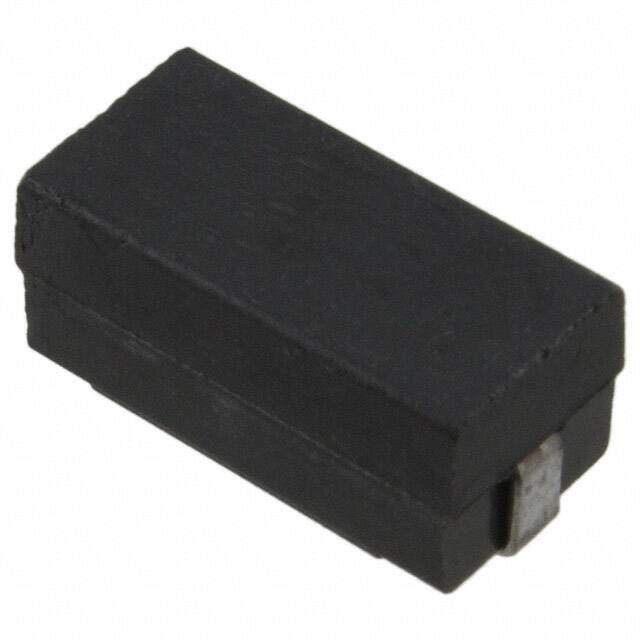

M27/367-21
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
Military MIL-PRF-27/367MIL4922 Nonstandard 0.520Lx0.250W 13.21mmx6.35mm 10muH
PDF
/
Buying Options
Total Price: USD $8.1
Unit Price: USD $8.1048
≥1 USD $8.1048
≥10 USD $6.9916
≥100 USD $6.484544
≥500 USD $6.281968
Inventory: 624
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 45 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -55°C~130°C
Packaging Tape & Reel (TR)
Published 2010
Series Military, MIL-PRF-27/367, MIL4922
Size / Dimension 0.520Lx0.250W 13.21mmx6.35mm
Tolerance ±15%
JESD-609 Code e0
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
HTS Code 8504.50.80.00
Current Rating (Amps) 2.36A
Packing Method TR, 13 Inch
Shielding NO
Number of Functions 1
Construction Rectangular
Inductance 10μH
Test Frequency 0.001MHz
DC Resistance (DCR) 71mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 1kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Rated Current-Max 2.36A
Dimensions
Height Seated (Max) 0.230 5.84mm
Compliance
RoHS Status Non-RoHS Compliant
