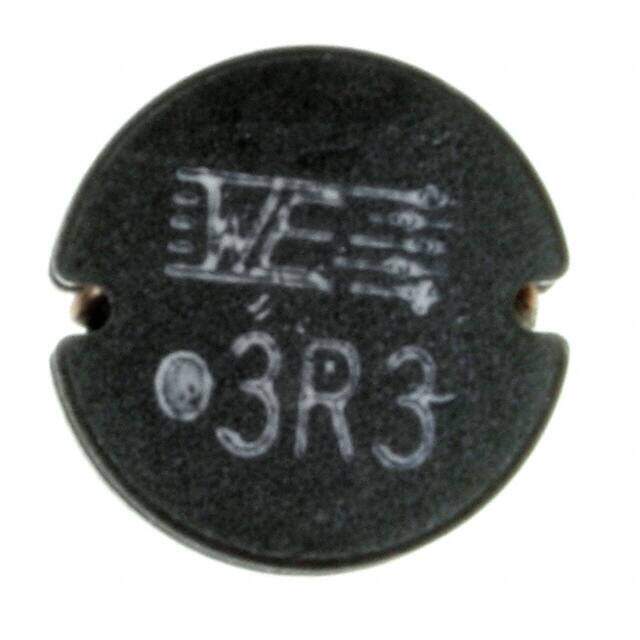

744776033A image
Favorite
744776033A image
Favorite

744776033A

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD2 Nonstandard 0.374Lx0.374W 9.50mmx9.50mm 3.3muH
PDF
/
Buying Options
Total Price: USD $1.82
Unit Price: USD $1.824402
≥1 USD $1.824402
≥10 USD $1.721129
≥100 USD $1.62371
≥500 USD $1.531806
≥1000 USD $1.445096
Inventory: 1130
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.374Lx0.374W 9.50mmx9.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 5A
Shielding Unshielded
Current Rating 5A
Inductance 3.3μH
Test Frequency 1kHz
DC Resistance (DCR) 20mOhm Max
Max DC Current 5A
Frequency - Self Resonant 55MHz
Q @ Freq 34 @ 7.96MHz
Inductance Frequency - Test 1kHz

Dimensions

Height 5.5mm
Height Seated (Max) 0.228 5.80mm
Length 9.4996mm
Width 9.4996mm

Compliance

RoHS Status ROHS3 Compliant
