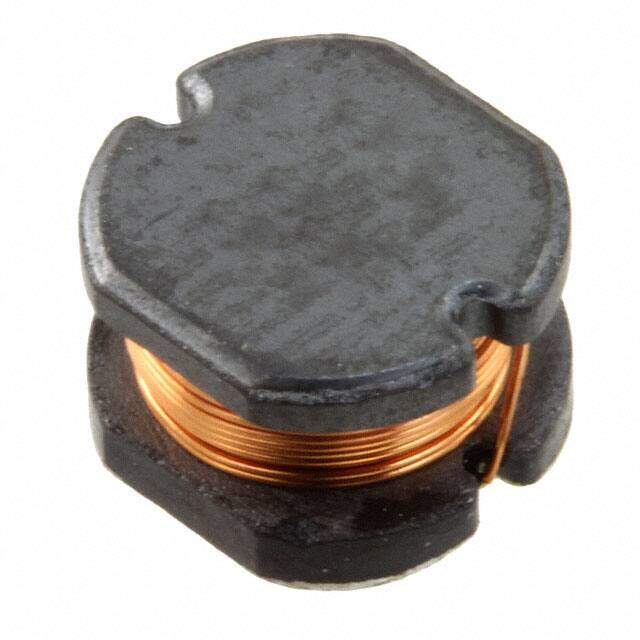

744775247 image
Favorite
744775247 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD2 Nonstandard 0.307Lx0.276W 7.80mmx7.00mm 470muH
PDF
/
Buying Options
Total Price: USD $15.43
Unit Price: USD $15.43465
≥1 USD $15.43465
≥10 USD $12.66445
≥100 USD $12.2683
≥500 USD $11.8731
≥1000 USD $11.47695
Inventory: 1087
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 7.8mm
Length 7mm
Height Seated (Max) 0.217 5.50mm
Height 5mm

Technical

Series Resistance 1.37Ohm
RMS Current (Irms) 360mA
DC Current 360mA
Inductance Tolerance 10%
Current - Saturation 380mA
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 3.4MHz
Max DC Current 360mA
DC Resistance (DCR) 1.96Ohm Max
Test Frequency 1kHz
Inductance 470μH
Military Standard Not
Current Rating 360mA
Depth 7.3mm
Shielding Unshielded
Current Rating (Amps) 360mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 1.96Ohm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.307Lx0.276W 7.80mmx7.00mm
Series WE-PD2
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 49 Weeks
