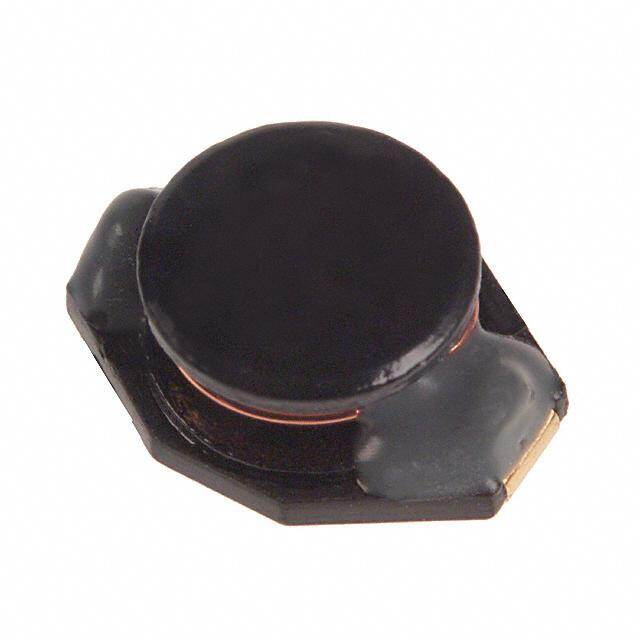

DU1352-471M
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
GENERAL PURPOSE INDUCTOR Non-RoHS Compliant Contains Lead 2002 Fixed Inductor 85C 100kHz 1.27Ohm 470muH
PDF
/
Inventory: 2785
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case Nonstandard
Core Material AMORPHOUS MAGNETIC
Technical
Packaging Cut Tape (CT)
Published 2002
Series DU1352
Tolerance 20%
ECCN Code EAR99
Max Operating Temperature 85°C
Min Operating Temperature -40°C
HTS Code 8504.50.80.00
Packing Method TR
Shielding Unshielded
Current Rating 500mA
Inductance 470 μH
Test Frequency 100kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 500mA
Case/Size Code 5137
DC Resistance (DCR) - Parallel 1.27Ohm
Rated Current-Max 0.5A
Inductance-Nom (L) 470 μH
Dimensions
Height Seated (Max) 5.207mm
Length 12.954mm
Width 9.398mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
