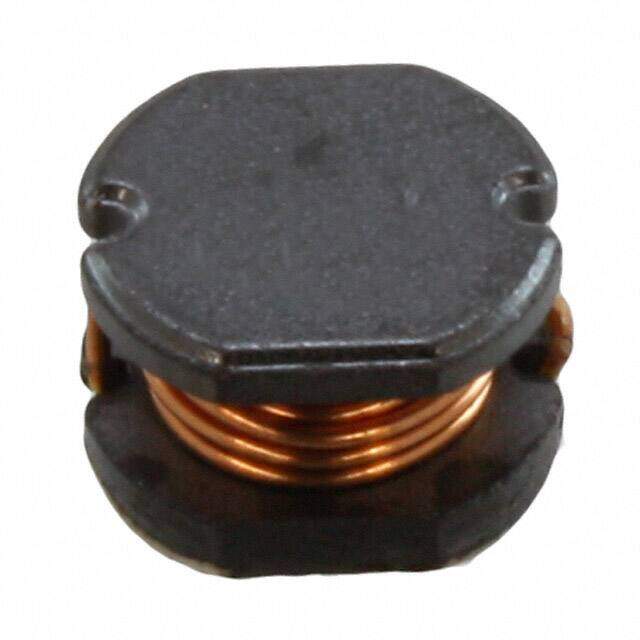

744775139
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.307Lx0.276W 7.80mmx7.00mm 39muH
PDF
/
Inventory: 3544
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 7.0104mm
Length 7.7978mm
Height Seated (Max) 0.217 5.50mm
Height 5mm
Technical
RMS Current (Irms) 1.25A
Inductance Tolerance 10%
Current - Saturation 1.33A
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 12.5MHz
Max DC Current 1.25A
DC Resistance (DCR) 160mOhm Max
Test Frequency 10kHz
Inductance 39μH
Current Rating 1.25A
Shielding Unshielded
Current Rating (Amps) 1.25A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 160mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.307Lx0.276W 7.80mmx7.00mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 18 Weeks
