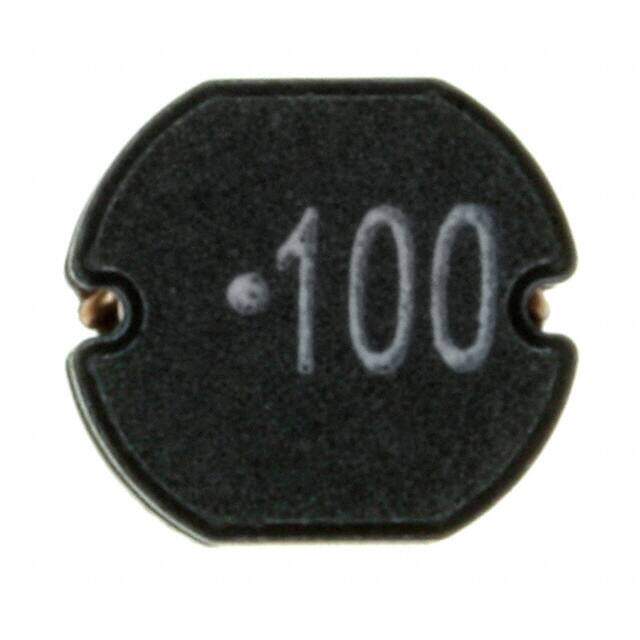

74477510 image
Favorite
74477510 image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-PD2 Nonstandard 0.307Lx0.276W 7.80mmx7.00mm 10muH
PDF
/
Buying Options
Total Price: USD $2.41
Unit Price: USD $2.41395
≥1 USD $2.41395
≥10 USD $1.98075
≥100 USD $1.919
≥500 USD $1.85725
≥1000 USD $1.7955
Inventory: 1160
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 7.0104mm
Length 7.8mm
Height Seated (Max) 0.217 5.50mm
Height 5mm

Technical

Series Resistance 44mOhm
RMS Current (Irms) 2.3A
Inductance Tolerance 10%
Current - Saturation 2.95A
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 28MHz
Max DC Current 2.3A
DC Resistance (DCR) 70mOhm Max
Test Frequency 1kHz
Inductance 10μH
Current Rating 2.3A
Depth 7mm
Shielding Unshielded
Current Rating (Amps) 2.3A
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 70mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.307Lx0.276W 7.80mmx7.00mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Number of Pins 2
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
