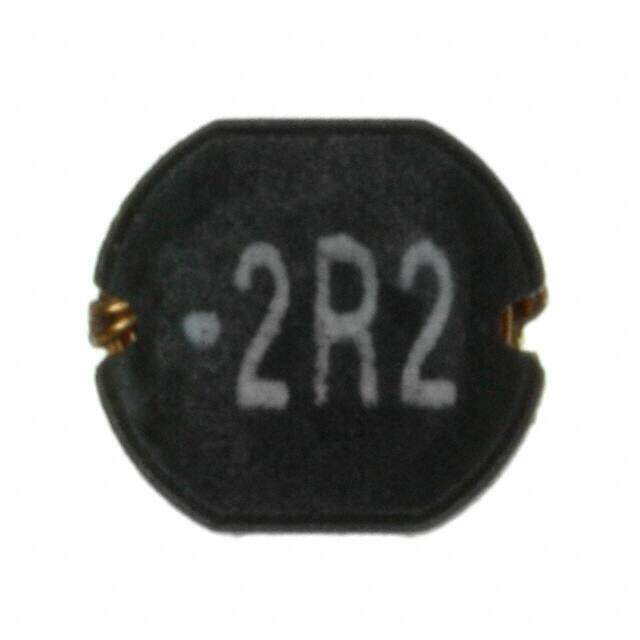

7447745022
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 2.2muH
PDF
/
Buying Options
Total Price: USD $16.71
Unit Price: USD $16.70765
≥1 USD $16.70765
≥10 USD $13.70945
≥100 USD $13.281
≥500 USD $12.85255
≥1000 USD $12.4241
Inventory: 3706
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 36mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 3.6A
Shielding Unshielded
Depth 5.8mm
Current Rating 3.6A
Inductance 2.2μH
Test Frequency 100kHz
DC Resistance (DCR) 36mOhm Max
Max DC Current 3.6A
Frequency - Self Resonant 64MHz
Inductance Frequency - Test 100kHz
Current - Saturation 3.5A
Inductance Tolerance 20%
RMS Current (Irms) 3.6A
Dimensions
Height 2mm
Height Seated (Max) 0.091 2.30mm
Length 5.7912mm
Width 5.2mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
