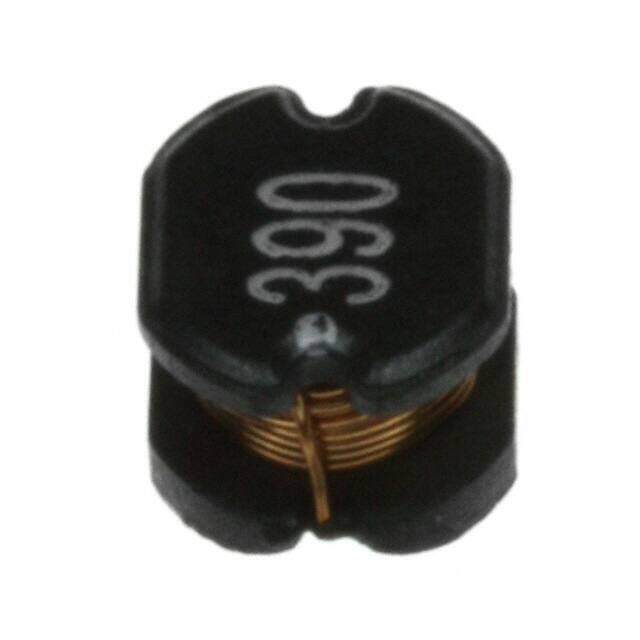

744774139
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 39muH
PDF
/
Inventory: 7454
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Tolerance ±15%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 320mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 940mA
Shielding Unshielded
Current Rating 940mA
Inductance 39μH
Test Frequency 10kHz
DC Resistance (DCR) 320mOhm Max
Max DC Current 940mA
Frequency - Self Resonant 12MHz
Inductance Frequency - Test 10kHz
Current - Saturation 1.1A
Inductance Tolerance 15%
RMS Current (Irms) 940mA
Dimensions
Height 4.5mm
Height Seated (Max) 0.191 4.85mm
Length 5.7912mm
Width 5.207mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
