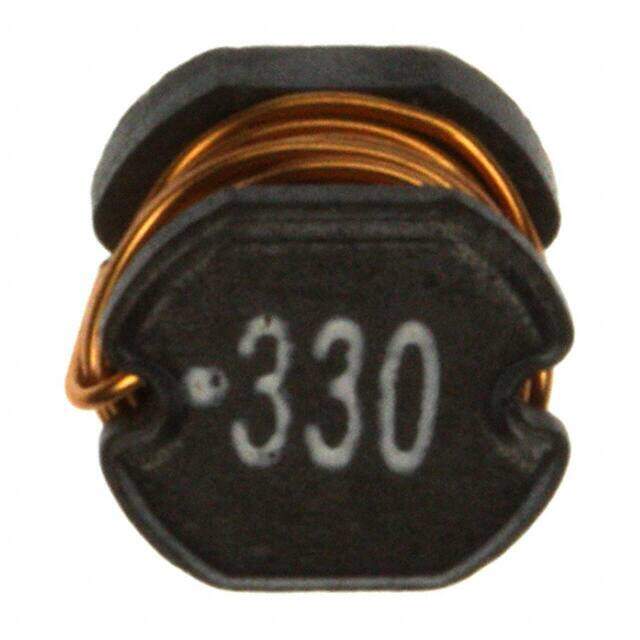

744774133
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD2 Nonstandard 0.228Lx0.205W 5.80mmx5.20mm 33muH
PDF
/
Buying Options
Total Price: USD $1.65
Unit Price: USD $1.6456
≥1 USD $1.6456
≥10 USD $1.57608
≥100 USD $1.41856
≥500 USD $1.31296
≥1000 USD $1.26104
≥3000 USD $1.15544
Inventory: 1127
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 5.2mm
Length 5.7912mm
Height Seated (Max) 0.191 4.85mm
Height 4.5mm
Technical
RMS Current (Irms) 1.09A
Inductance Tolerance 15%
Current - Saturation 1.17A
Inductance Frequency - Test 10kHz
Frequency - Self Resonant 14MHz
Max DC Current 1.09A
DC Resistance (DCR) 230mOhm Max
Test Frequency 10kHz
Inductance 33μH
Current Rating 1.09A
Shielding Unshielded
Current Rating (Amps) 1.09A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Resistance 230mOhm
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±15%
Size / Dimension 0.228Lx0.205W 5.80mmx5.20mm
Series WE-PD2
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
