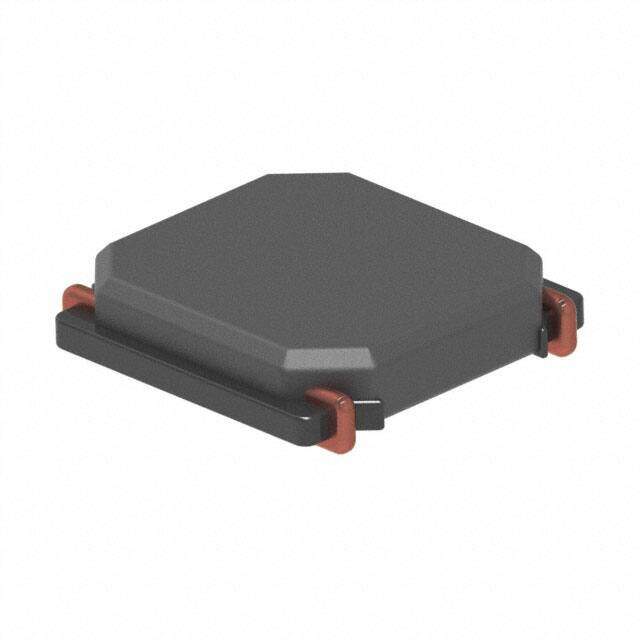

LMLP06A6M330CTAR image
Favorite
LMLP06A6M330CTAR image
Favorite

LMLP06A6M330CTAR

AVX Corporation
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description GENERAL PURPOSE INDUCTOR ROHS3Compliant Active 8504.50.80.00 fixed air core inductor -40C~125C 100kHz 700mOhm 33muH
PDF
/
Inventory: 1996
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.047 1.20mm

Technical

Rated Current-Max 0.53A
Case/Size Code 2424
Current - Saturation 590mA
Inductor Type GENERAL PURPOSE INDUCTOR
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 700mOhm
Inductance 33μH
Construction Magnetic Shield
Shielding Shielded
Packing Method TR, 7 Inch
Current Rating (Amps) 530mA
HTS Code 8504.50.80.00
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.236Lx0.236W 6.00mmx6.00mm
Series LMLP
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
