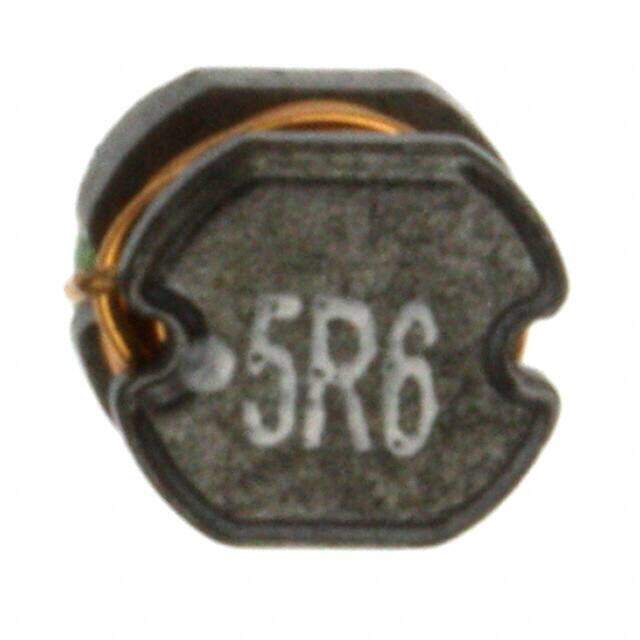

744773056
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 5.6UH 1.58A 126 MOHM
PDF
/
Buying Options
Total Price: USD $1.39
Unit Price: USD $1.389428
≥1 USD $1.389428
≥10 USD $1.310776
≥100 USD $1.236591
≥500 USD $1.166593
≥1000 USD $1.10056
Inventory: 7170
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD2
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 1.58A
Shielding Unshielded
Inductance 5.6μH
DC Resistance (DCR) 126mOhm Max
Frequency - Self Resonant 48MHz
Inductance Frequency - Test 10kHz
Current - Saturation 2.43A
Dimensions
Height Seated (Max) 0.138 3.50mm
Compliance
RoHS Status ROHS3 Compliant
