PM5022-5R6M-RC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description

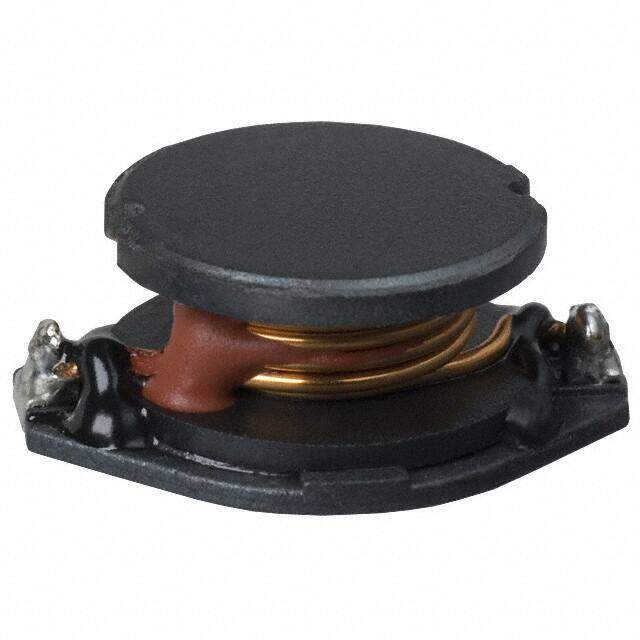

PM5022 Nonstandard 0.720Lx0.551W 18.30mmx14.00mm 5.6muH
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8096
≥1 USD $0.8096
≥10 USD $0.68288
≥100 USD $0.620928
≥500 USD $0.583792
≥1000 USD $0.48444
Inventory: 976
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Number of Pins 2
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2007
Series PM5022
Size / Dimension 0.720Lx0.551W 18.30mmx14.00mm
Tolerance ±20%
JESD-609 Code e2
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
Terminal Finish Copper/Nickel/Tin (Cu/Ni/Sn)
HTS Code 8504.50.80.00
Packing Method TR, EMBOSSED, 13 INCH
Shielding NO
Number of Functions 1
Depth 14.3mm
Construction Rectangular
Current Rating 5.3A
Inductance 5.6μH
Test Frequency 100kHz
DC Resistance (DCR) 15mOhm
Max DC Current 6.4A
Frequency - Self Resonant 30MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 23 @ 7.96MHz
Current - Saturation 12.8A
Q Factor 23
Dimensions
Height 6.6mm
Height Seated (Max) 0.272 6.90mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
