744772390
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

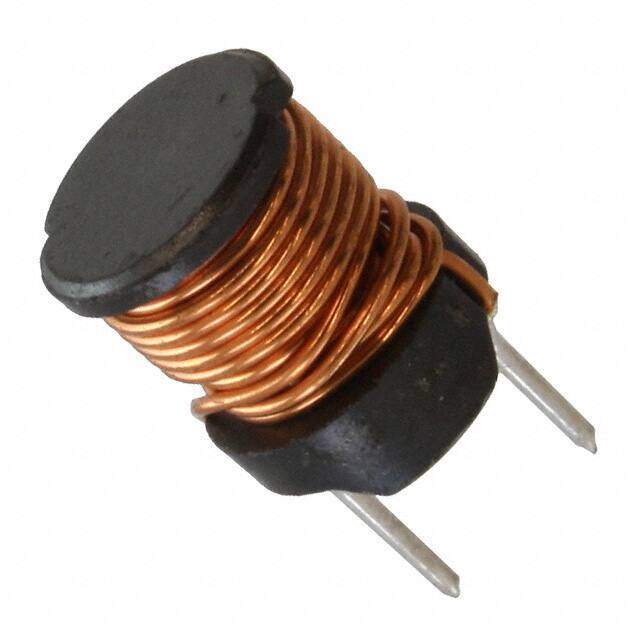

WE-TI Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 39muH
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.809234
≥1 USD $0.809234
≥10 USD $0.76343
≥100 USD $0.720216
≥500 USD $0.679456
≥1000 USD $0.640996
Inventory: 1189
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Length 9.5mm
Height Seated (Max) 0.394 10.00mm
Height 9.4996mm
Diameter 7.8mm
Technical
RMS Current (Irms) 2.5A
Inductance Tolerance 10%
Current - Saturation 2.5A
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 9.8MHz
Max DC Current 2.5A
DC Resistance (DCR) 90mOhm Max
Test Frequency 1kHz
Inductance 39μH
Lead Pitch 5mm
Current Rating 2.5A
Shielding Unshielded
Current Rating (Amps) 2.5A
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Type Wirewound
Termination Radial
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±10%
Size / Dimension 0.307Dia 7.80mm
Series WE-TI
Packaging Tray
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Number of Pins 2
Package / Case Radial, Vertical Cylinder (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
