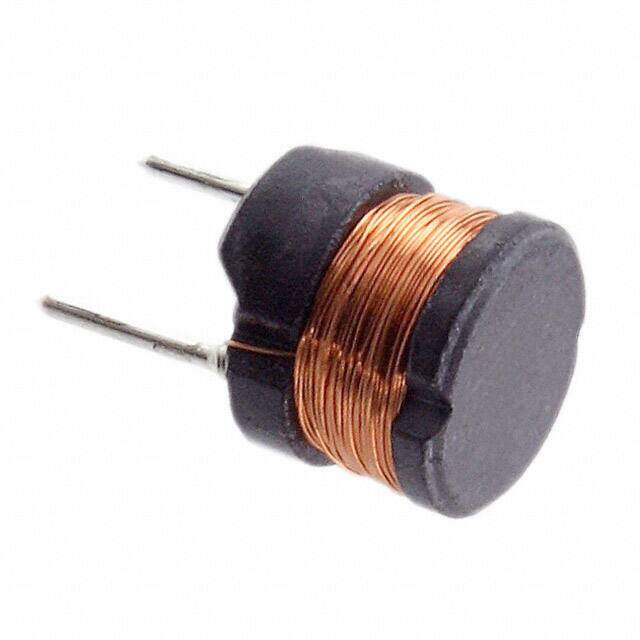

7447721047 image
Favorite
7447721047 image
Favorite

7447721047

Würth Elektronik
RoHS
RoHS RoHS compliant
Package Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description WE-TI Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 4.7mH
PDF
/
Buying Options
Total Price: USD $0.82
Unit Price: USD $0.824308
≥1 USD $0.824308
≥10 USD $0.777645
≥100 USD $0.733639
≥500 USD $0.692106
≥1000 USD $0.652936
Inventory: 1206
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Number of Pins 2
Material - Core Ferrite

Technical

Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TI
Size / Dimension 0.307Dia 7.80mm
Tolerance ±5%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 200mA
Shielding Unshielded
Current Rating 200mA
Lead Pitch 5mm
Inductance 4.7mH
Test Frequency 1kHz
DC Resistance (DCR) 15Ohm Max
Max DC Current 200mA
Frequency - Self Resonant 950kHz
Inductance Frequency - Test 1kHz
Current - Saturation 175mA
Inductance Tolerance 5%
RMS Current (Irms) 200mA

Dimensions

Diameter 7.8mm
Height 9.4996mm
Height Seated (Max) 0.394 10.00mm
Length 9.5mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
