RL895-472K-RC
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

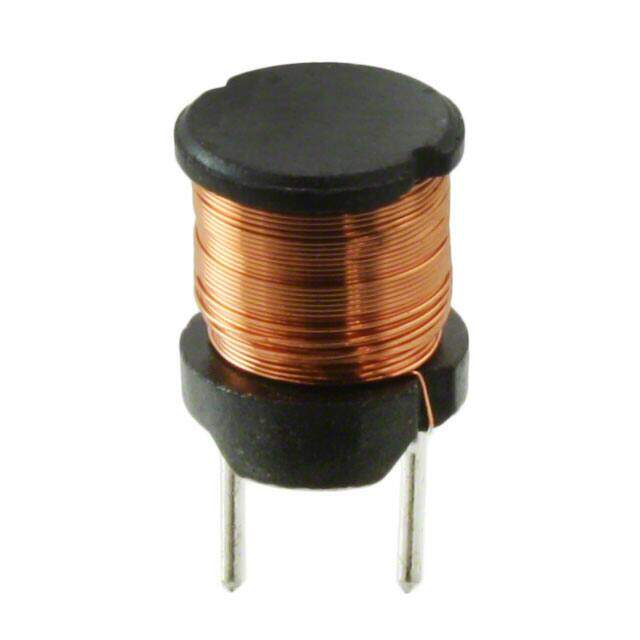

RL895 Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 4.7mH
PDF
/
Buying Options
Total Price: USD $1.25
Unit Price: USD $1.2496
≥1 USD $1.2496
≥10 USD $1.05424
≥100 USD $0.747472
≥500 USD $0.594176
≥1000 USD $0.555843
≥3000 USD $0.536677
Inventory: 680
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.374 9.50mm
Height 9.5mm
Technical
Special Feature Q IS MEASURED AT: 0.252 MHZ
DC Current 130mA
Quality Factor-Min (at L-nom) 45
Lead/Base Style Radial
Q @ Freq 45 @ 252kHz
Inductor Application RF INDUCTOR
Frequency - Self Resonant 600kHz
Max DC Current 130mA
DC Resistance (DCR) 7.89Ohm Max
Test Frequency 1kHz
Inductance 4.7mH
Lead Diameter 0.7 mm
Lead Pitch 5mm
Military Standard Not
Current Rating 130mA
Construction Cylindrical
Number of Functions 1
Shielding NO
Packing Method Tray
HTS Code 8504.50.80.00
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Wirewound
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Tolerance ±10%
Size / Dimension 0.307Dia 7.80mm
Series RL895
Published 2006
Packaging Bulk
Operating Temperature -30°C~100°C
Physical
Shape/Size Description CYLINDRICAL PACKAGE
Material - Core Ferrite
Package / Case Radial, Vertical Cylinder (Open)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 16 Weeks
