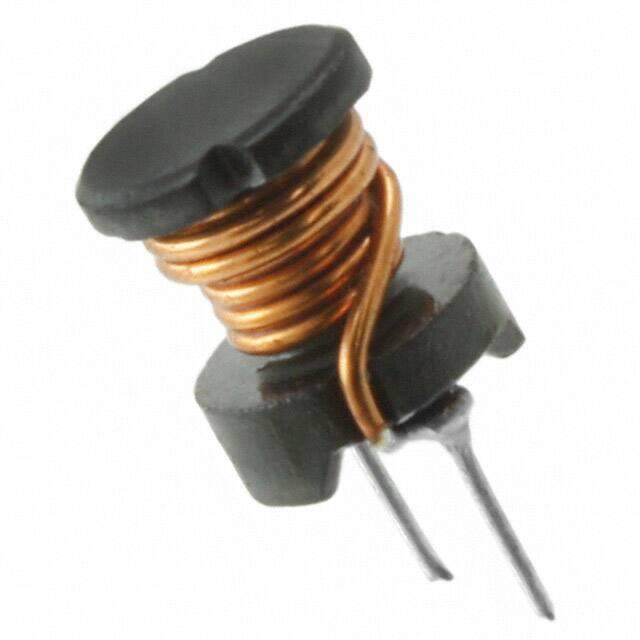

744772022
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-TI Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.84
Unit Price: USD $0.842012
≥1 USD $0.842012
≥10 USD $0.794355
≥100 USD $0.749397
≥500 USD $0.706974
≥1000 USD $0.666956
Inventory: 1160
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Number of Pins 2
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tray
Series WE-TI
Size / Dimension 0.307Dia 7.80mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Radial
Type Wirewound
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 6A
Shielding Unshielded
Current Rating 6A
Lead Pitch 5mm
Inductance 2.2μH
Test Frequency 1kHz
DC Resistance (DCR) 10mOhm Max
Max DC Current 6A
Frequency - Self Resonant 75.5MHz
Inductance Frequency - Test 1kHz
Current - Saturation 8A
Inductance Tolerance 20%
RMS Current (Irms) 6A
Dimensions
Diameter 7.8mm
Height 10mm
Height Seated (Max) 0.394 10.00mm
Length 9.5mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
