SBCP-47HY2R2B
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

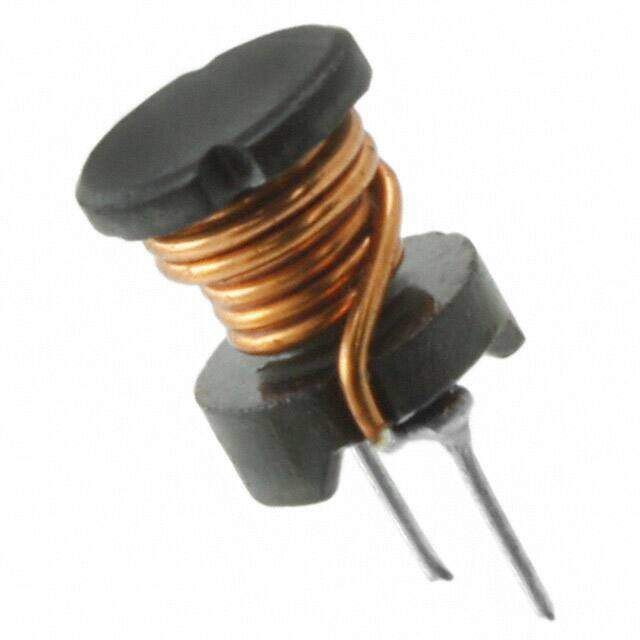

SBCP Radial Vertical Cylinder (Open) 0.197Dia 5.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.58
Unit Price: USD $0.5808
≥1 USD $0.5808
≥10 USD $0.49456
≥100 USD $0.449856
≥500 USD $0.422928
≥1000 USD $0.350856
≥3000 USD $0.323902
Inventory: 1118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 29 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Material - Core Ferrite
Technical
Operating Temperature -20°C~105°C
Packaging Bulk
Published 2016
Series SBCP
Size / Dimension 0.197Dia 5.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 2.6A
Shielding Unshielded
Construction Cylindrical
Lead Length 3.5mm
Lead Spacing 2.5mm
Lead Diameter 0.5 mm
Inductance 2.2μH
DC Resistance (DCR) 29mOhm Max
Inductance Frequency - Test 10kHz
Current - Saturation 3.2A
Rated Current-Max 2.6A
Inductance Tolerance 20%
Dimensions
Height Seated (Max) 0.295 7.50mm
Compliance
RoHS Status ROHS3 Compliant
