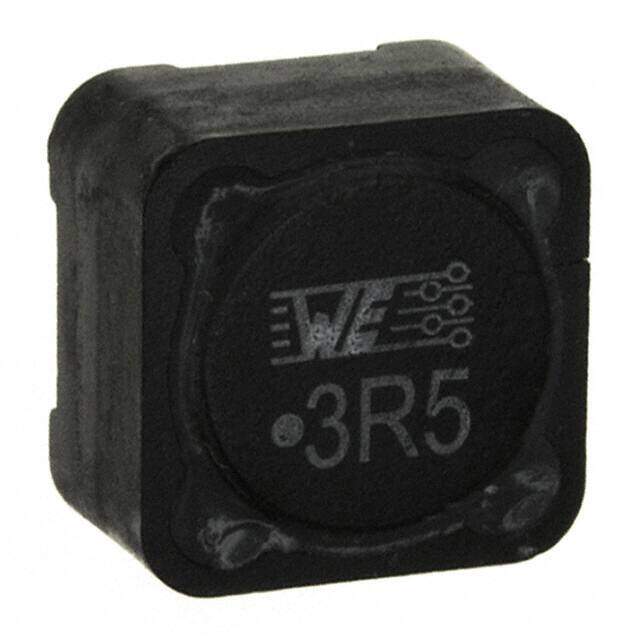

744771003
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
WE-PD Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 3.5muH
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.3414
≥1 USD $1.3414
≥10 USD $1.10105
≥100 USD $1.0659
≥500 USD $1.0317
≥1000 USD $0.9975
Inventory: 1343
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series WE-PD
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Resistance 8mOhm
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 9.25A
Shielding Shielded
Depth 12mm
Current Rating 9.25A
Inductance 3.5μH
Test Frequency 1kHz
DC Resistance (DCR) 8mOhm Max
Max DC Current 9.25A
Frequency - Self Resonant 40MHz
Inductance Frequency - Test 1kHz
Current - Saturation 9A
Inductance Tolerance 20%
RMS Current (Irms) 9.25A
Series Resistance 8mOhm
Dimensions
Height 6mm
Height Seated (Max) 0.236 6.00mm
Length 12mm
Width 12mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
