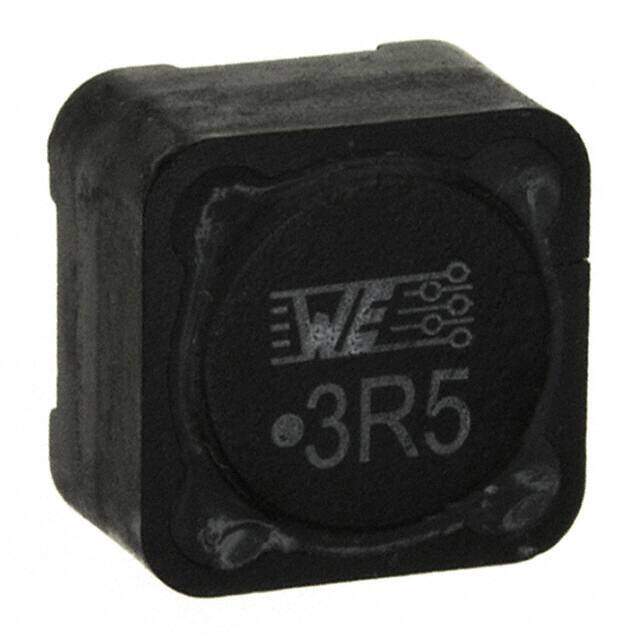

74477003
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 3.5UH 8.9A 14 MOHM SMD
PDF
/
Buying Options
Total Price: USD $22.02
Unit Price: USD $22.0172
≥1 USD $22.0172
≥10 USD $18.06615
≥100 USD $17.5009
≥500 USD $16.9366
≥1000 USD $16.3723
Inventory: 1122
Minimum: 1
-
+
Technical Details
Compliance
Ratings AEC-Q200
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.315 8.00mm
Technical
Current - Saturation 9.6A
Inductance Frequency - Test 1kHz
Frequency - Self Resonant 37.5MHz
DC Resistance (DCR) 14mOhm Max
Inductance 3.5μH
Shielding Shielded
Current Rating (Amps) 8.9A
Resistance 11mOhm
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance -20% +40%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series WE-PD
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
